SRT1500RMXLA-NC Technical Specifications

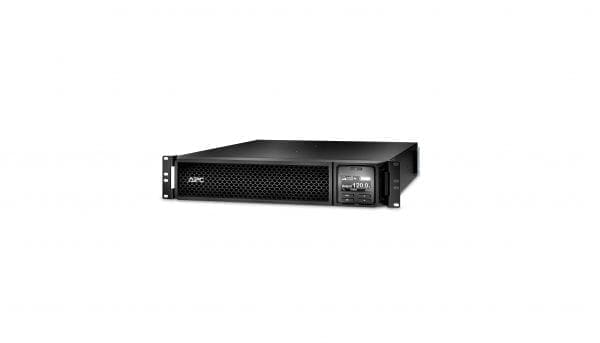

APC Smart-UPS SRT 1500VA RM 120V 1.35 kW Network Card
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :1500VA RM Network Card
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Fast Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45, 1 x management (USB), 1 x EPO (emergency power off)
Cable Details
Cables Included :Serial cable – external, Power cable 6 ft, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.35 kilograms per millimetere
Power Capacity (VA) :1500 volt ampere per kilogram 1500VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 108 – 150 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Energy Rating :432 joules
Circuit Protection :Circuit breaker
Power Factor Correction :Power Factor Correction (PFC)
Efficiency :86.3% at 25% Load, 90.9% at 100% Load, 90.8% at 75% Load, 90% at 50% Load
Power Device Features :Internal bypass, Audible alarm, LCD display, Lightning protection, Automatic self-test, Hot-swappable batteries, Cold-start function, Firmware upgradable, LED indicators, Eco-Mode
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :13 min at half load, 5 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Temperature probe
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :CSA C22.2 No. 107.3, IP20, FCC Part 15 A, UL 1778
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :20 inch
Height :3.3 inch
Weight :48.5 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.4 inch
Shipping Depth :29.5 inch
Shipping Height :9.7 inch
Shipping Weight :65.26 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :50 dBA
