SRF9H Technical Specifications

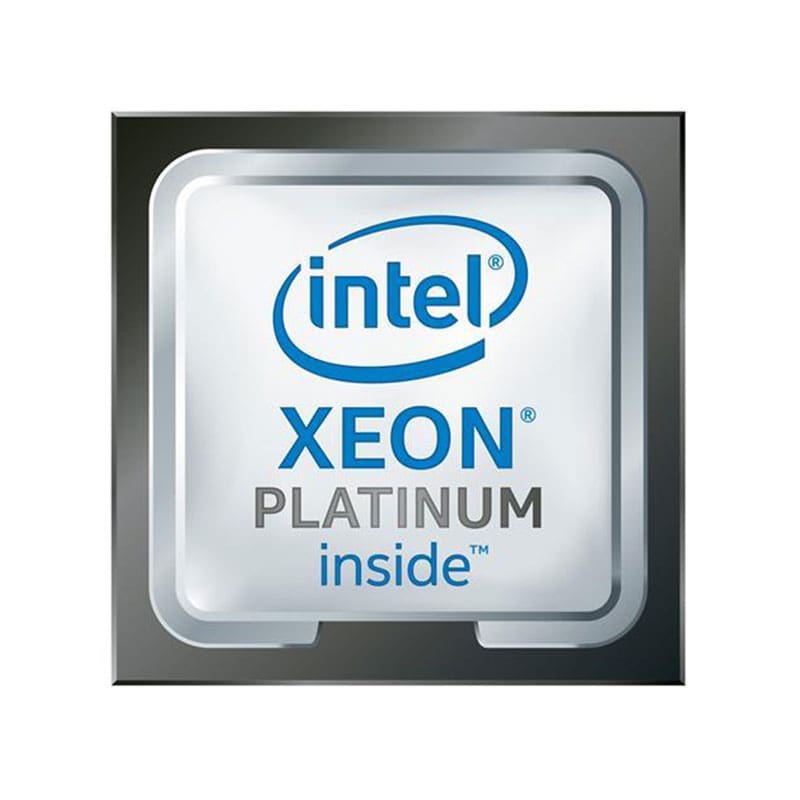

Intel Xeon Platinum 8260 24-Core 2.40GHz 36MB L3 Cache Socket FCLGA3647 Processor
Brand: Intel
Part No: SRF9H
Processor Type: Server
Processor Family: 2nd Generation Intel Xeon Scalable Processors
Series: Xeon Platinum Processor
Core Model Type/ProcNo: 8260
Processor Code Name: Cascade Lake
Core Stepping: B1
Manufacturing Technology: 14 nm
# of Cores: 24
# of Threads: 48
Clock Speed: 2.40 GHz
Max Turbo Frequency: 3.90 GHz
L3 Cache Size: 35.75 MB
Thermal Power: 165 Watts
Max Memory Size: 1 TB
Memory Types: DDR4-2933
Maximum Memory Speed: 2933 MHz
Memory Channels: 6
ECC Memory Supported: Yes
CPU Socket Type: LGA 3647
Package Size: 76.0mm x 56.5mm
TCASE: 90 °C
Embedded Options Available: No
Scalability: S8S
PCI Express: 3.0
Max # of PCI Express Lanes: 48
