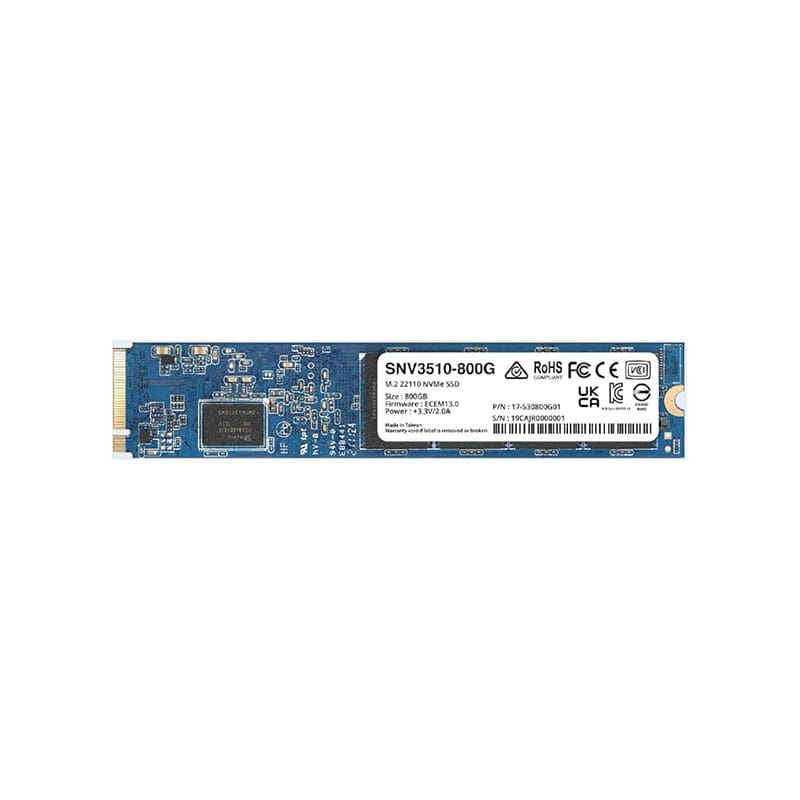

SNV3510-800G Technical Specifications
Synology SNV3000 800 GB Solid State Drive M.2 22110
Brand Synology
Product Line Synology
Model SNV3510-800G
Manufacturer Synology
Storage
Endurance Type 1022 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 800 GB
Hard Drive Features
End-to-end data protection, NVM Express (NVMe), Power Loss Protection (PLP)
Hard Drive Type
Internal hard drive
HD Interface PCI Express 3.0 x4 (NVMe)
Max 4KB Random Read 400000 IOPS
Max Internal Data Transfer Rate 3100 MBps
Max Write Transfer Rate 1000 MBps
Maximum 4KB Random Write 70000 IOPS
Non-Recoverable Errors 1 per 10^17
Storage Interface PCI Express 3.0 x4 (NVMe)
24×7 Operation Yes
Power
Power Consumption 1.7 Watt (idle), 5.1 Watt (write), 6.2 Watt (read)
Technical Information
Compatible Bay M.2 22110
Hard Drive Form Factor M.2 22110
Hard Drive Form Factor (metric) M.2 22110
Max Operating Temperature 158 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 1,800,000 Hours
Product Information
Packaged Quantity 1
Product Type Solid state drive
Dimensions & Weight
Height 0.2 inch
Width 0.9 inch
Depth 4.3 inch
