SNV3410-800G Technical Specifications

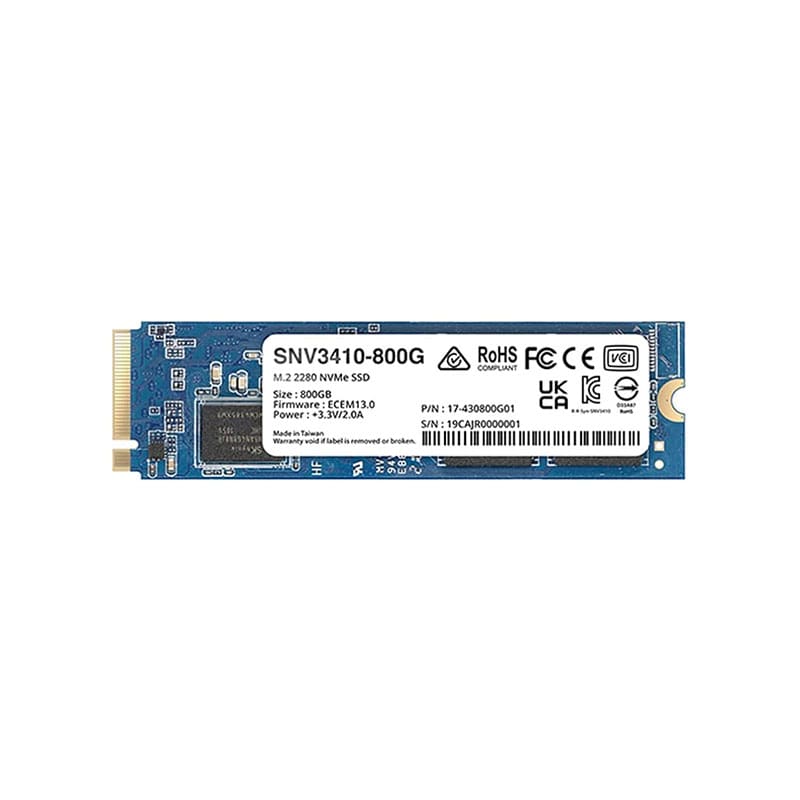

Synology SNV3410 800GB M.2 2280 PCI Express 3.0 X4 SSD
Brand Synology
Product Line Synology
Model SNV3410
Manufacturer Synology
Storage
Endurance Type 1022 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 800 GB
Hard Drive Features
End-to-end data protection, NVM Express (NVMe)
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max 4KB Random Read
400000 IOPS
Max Internal Data Transfer Rate
3100 MBps
Max Write Transfer Rate
1000 MBps
Maximum 4KB Random Write
70000 IOPS
Non-Recoverable Errors
1 per 10^17
Storage Interface
PCI Express 3.0 x4 (NVMe)
24×7 Operation
Yes
Power
Power Consumption
1.6 Watt (idle), 4.6 Watt (write), 5.5 Watt (read)
Technical Information
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
1,800,000 Hours
Product Information
Packaged Quantity
1
Product Type
Solid state drive
Dimensions & Weight
Height 0.1 inch
Width 0.9 inch
Depth 3.1 inch
