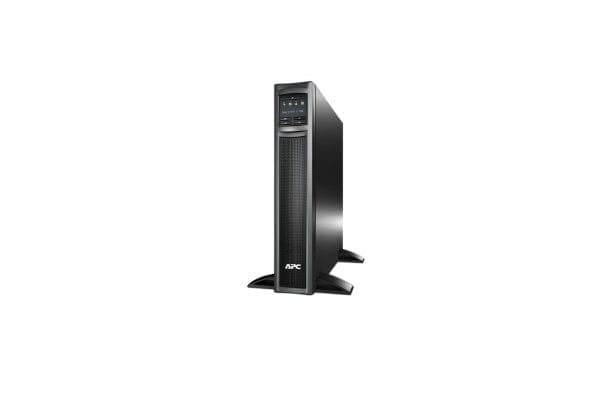

SMX750US Technical Specifications
APC Smart-UPS X 750VA Rack/Tower 120V UPS – TAA Compliant
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :SMX750US
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB)
Cable Details
Cables Included :USB cable – external, Power cable 8 ft
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :600 watt
Power Capacity (VA) :750 volt ampere per kilogram 750VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Power Device Features :LCD display, Audible alarm, Emergency power off, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15R
Battery
Run Time (Up To) :14.2 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :14.2 min at full load, 37.8 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Tower stand
TAA Compliant :Yes
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :REACH, RoHS, UL 1778, UL 1449, cUL
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.5 inch
Depth :19.3 inch
Height :17 inch
Weight :48.61 lbs
Dimensions & Weight (Shipping)
Shipping Width :9.7 inch
Shipping Depth :24.4 inch
Shipping Height :23.2 inch
Shipping Weight :58.42 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :40 decibel
