SMX2200RMLVUS Technical Specifications

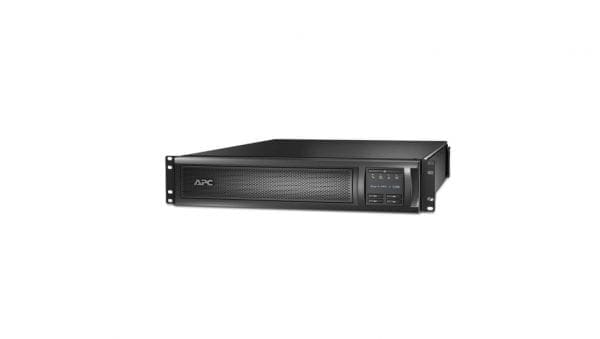

APC Smart-UPS X 2200 Rack/Tower LCD – UPS – 1980 W – 2200 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :2200 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA L5-30P
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Power Device Features :LCD display, Automatic Voltage Regulation (AVR), Audible alarm, Overload protection, Hot-swappable batteries, Emergency power off, Cold-start function, Automatic self-test, LED indicators, Predicitive failure notification
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15R, 2 x power NEMA 5-20R
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Run Time Details
Run Time (Up To) :25.3 min at half load, 9.8 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :UL 1778, VCCI Class A ITE, TUV, EN 50091-2, NOM, EN55022 Class A, BSMI, CSA, FCC Part 15 A
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
