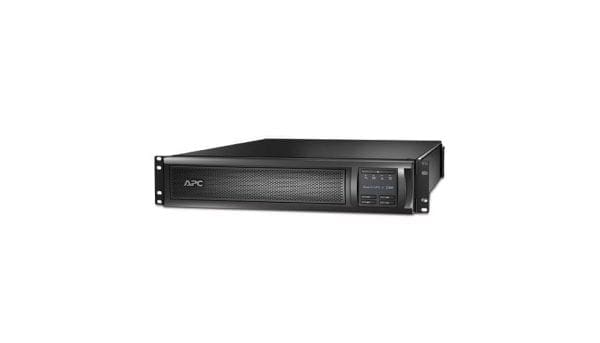

SMX2200RMLV2U Technical Specifications
APC Smart-UPS X 2200VA Rack/Tower LCD 100-127V
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :2200VA Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off), 1 x serial
Cable Details
Cables Included :USB cable – external, Serial cable – external, Power cable 8 ft
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.98 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA L5-30P
Input Connector Qty :1
Output Connector Type :2 x power NEMA 5-20R, 6 x power NEMA 5-15R
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :Cold-start function, Audible alarm, Automatic Voltage Regulation (AVR), Emergency power off, Overload protection, LED indicators, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20R, 6 x 6 x power NEMA 5-15R
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :25.3 min at half load, 9.8 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :EN 55022 Class A, UL 1778, VCCI Class A, FCC Part 15 A, RoHS, REACH, CSA, TUV, EN 50091-2, BSMI, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Weight :84.77 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Shipping Weight :100 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
