SMX2200R2HVNC Technical Specifications

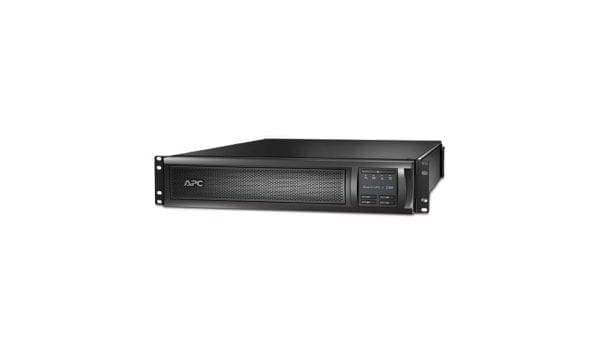

APC Smart-UPS X 2200 Rack/Tower 1980 W 2200 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :2200 Rack/Tower LCD
Bundled with :APC UPS Network Management Card
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB, Ethernet 10/100
Remote Management Protocol :SNMP
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x USB, 1 x EPO (emergency power off), 1 x RS-232
Cable Details
Cables Included :USB cable, Serial cable, Power cable 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 230 volt
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 230 volt
Input Voltage Range :AC 140 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C20
Input Connector Qty :1
Output Connector Qty :9
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Efficiency :98.1%
Power Device Features :Automatic Voltage Regulation (AVR), Overload protection, Cold-start function, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :8 x power IEC 60320 C13, 1 x power IEC 60320 C19
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :9.8 min at full load, 25.3 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :GOST, IEC 60950, UL 1449, REACH, UL 1778, VDE, FCC Part 15 A, IRAM, CSA, EN 50091-2, C-Tick, EN 50091-1, RoHS
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Weight :82.1 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Shipping Weight :99.78 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
