SMX2000LVNC Technical Specifications

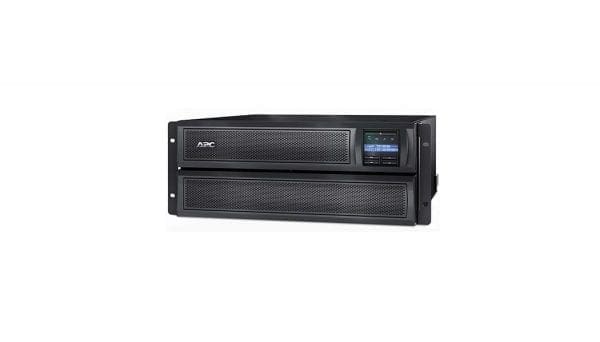

APC Smart-UPS X 2000 Rack/Tower LCD UPS 1800 W 1920 VA with APC UPS Network Management Card AP9631
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :2000 Rack/Tower LCD
Bundled with :APC UPS Network Management Card AP9631
Packaged Quantity :1
2000VA
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, RS-232, USB
Remote Management Protocol :SSH-2, SNMP 3, HTTP, SSH, HTTPS, Telnet, SNMP 2c, SNMP 1
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
UPS Output Waveform :Sinewave
Power Provided :1800 watt
Power Capacity (VA) :1920 volt ampere per kilogram 1920VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-20
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :Automatic Voltage Regulation (AVR), LED indicators, Audible alarm, Hot-swappable batteries, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L5-20, 6 x power NEMA 5-15, 3 x power NEMA 5-20
Battery
Run Time (Up To) :11 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :11 min at full load, 28 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :UL 1449, NOM, REACH, TUV, BSMI, EN 50091-2, FCC Part 15 A, RoHS, EN55022 Class A, UL 1778, CSA, VCCI Class A
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
