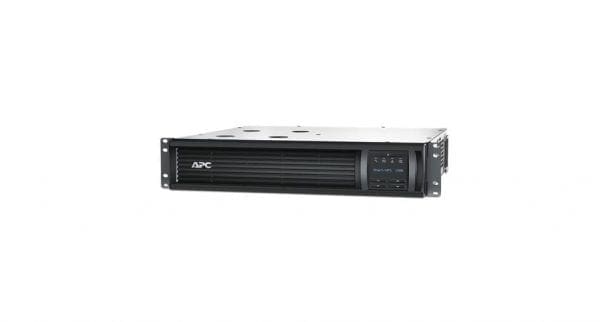

SMX1500RMUS Technical Specifications
APC Smart-UPS X UPS 1.2 kW 1440 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :SMX1500RMUS
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45, 1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :Serial cable – external, Power cable 8 ft
Software
Type :APC PowerChute Business Edition
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.2 kilograms per millimetere
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15R
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :645 joules
Efficiency :97.9% at 50% Load, 96.5% at 25% Load, 98.2% at 100% Load, 98.2% at 75% Load
Power Device Features :Automatic Voltage Regulation (AVR), Audible alarm, Green Function, Cold-start function, Auto restart, Overload protection, Remote Emergency Power Off (REPO), Predicitive failure notification, LED indicators, Noise filtering, LCD display, Temperature-compensated battery charging, Energy meter, Automatic self-test, Intelligent Battery Management, Hot-swappable batteries
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15R
Battery
Run Time (Up To) :5.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :17.2 min at half load, 5.8 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Temperature probe, Removable support feet
TAA Compliant :Yes
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :EN 1499, RoHS, UL 1778, REACH SvHC, cUL, Plug and Play
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :19.3 inch
Height :3.5 inch
Weight :54.72 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.2 inch
Shipping Depth :24.4 inch
Shipping Height :9.7 inch
Shipping Weight :66.14 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :40 dBA
