SMT750RM2UNC Technical Specifications

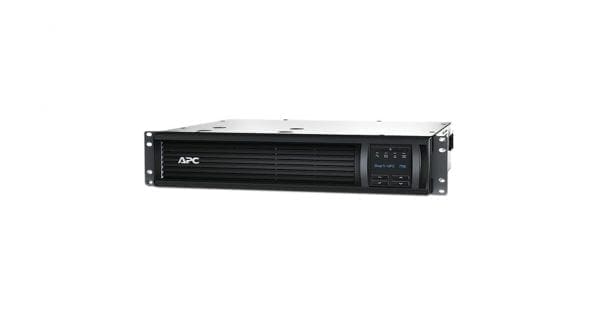

APC Smart-UPS 750VA LCD RM UPS 500 W 750 VA with APC UPS Network
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :750VA LCD RM
Bundled with :APC UPS Network Management Card
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet, USB
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, Management (Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Power cable 8 ft
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
UPS Output Waveform :Sinewave
Power Provided :500 watt
Power Capacity (VA) :750 volt ampere per kilogram 750VA
Voltage Required :AC 120V
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Switchover Time :2 millisecond
Surge Energy Rating :459 joules
Circuit Protection :Circuit breaker
Power Device Features :LCD display, Automatic self-test, Automatic Voltage Regulation (AVR), Predicitive failure notification, Cold-start function, Audible alarm, LED indicators, Hot-swappable batteries, Energy meter
Power Output Connectors Details
Power Output Connectors Details :Power NEMA 5-15
Battery
Run Time (Up To) :5.5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :16 min at half load, 5.5 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :2
Compliant Standards :FCC Part 15 A, UL 1449, CSA, REACH, RoHS, UL 1778
Dimensions & Weight
Width :17 inch
Depth :16 inch
Height :3.5 inch
Weight :38.01 lbs
Dimensions & Weight (Shipping)
Shipping Width :21.5 inch
Shipping Depth :23 inch
Shipping Height :9.5 inch
Shipping Weight :46.69 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :42 dBA
