SMT2200RMUS Technical Specifications

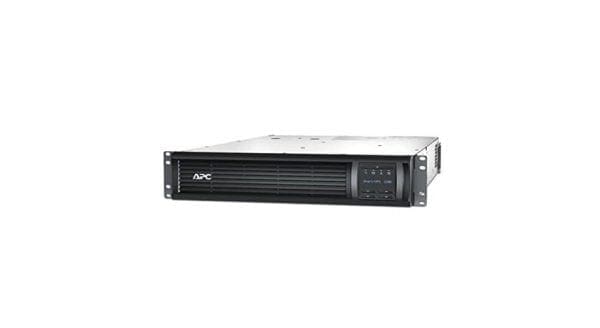

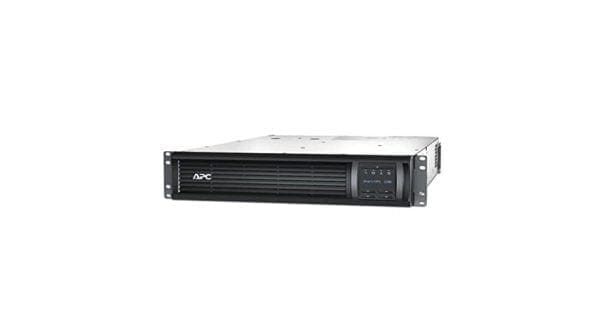

APC Smart-UPS 2200VA LCD RM 2U UPS 1980 W 2200 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :2200VA LCD RM 2U
Country Kits :United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :USB cable – external, Power cable 8 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 143 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-20
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :530 joules
Power Device Features :LCD display, Audible alarm, Cold-start function, LED indicators
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA 5-20, 6 x power NEMA 5-15
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :5 min at full load, 16 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :FCC Part 15 A, REACH, UL 1778, CSA
Dimensions & Weight
Width :18.9 inch
Depth :26.9 inch
Height :3.4 inch
Weight :93.28 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :38.6 inch
Shipping Height :10 inch
Shipping Weight :109.63 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
