SMT1500US Technical Specifications

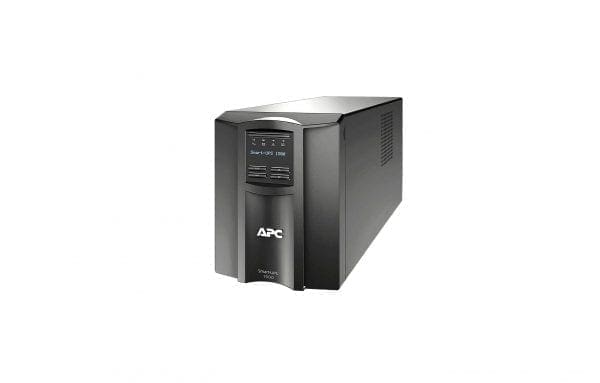

APC Smart-UPS 1500VA LCD UPS 1000 W 1440 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1500VA LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :Power cable – integrated – 6 ft
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1000 watt
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-15
Input Connector Qty :1
Output Connector Qty :8
Surge Energy Rating :459 joules
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15
Battery
Run Time (Up To) :7 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :51 min at 300 Watts, 8 min at 900 Watts, 23 min at 500 Watts, 10 min at 800 Watts, 17 min at 600 Watts, 84 min at 200 Watts, 301 min at 50 Watts, 33 min at 400 Watts, 172 min at 100 Watts, 7 min at full load, 23 min at half load, 12 min at 700 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :cUL, REACH, UL 1778, RoHS
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.6 inch
Weight :53.11 lbs
Dimensions & Weight (Shipping)
Shipping Width :12.9 inch
Shipping Depth :23.4 inch
Shipping Height :14.8 inch
Shipping Weight :60.03 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
