SMT1000US Technical Specifications

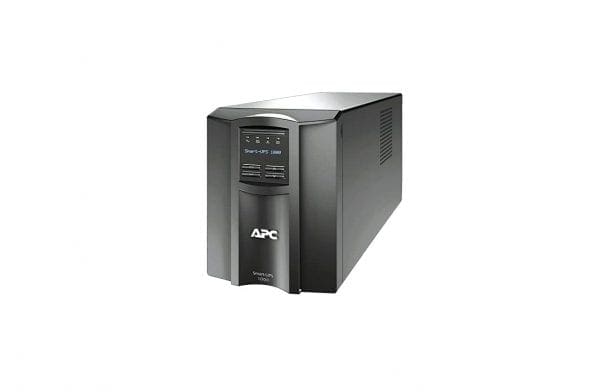

APC Smart-UPS 1000VA LCD UPS 700 W 1000 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1000VA LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :Power cable – integrated – 6 ft
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :700 watt
Power Capacity (VA) :1000 volt ampere per kilogram 1000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-15
Input Connector Qty :1
Output Connector Qty :8
Surge Energy Rating :459 joules
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15
Battery
Run Time (Up To) :6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :6 min at full load, 100 min at 100 Watts, 19 min at half load, 45 min at 200 Watts, 7 min at 600 Watts, 25 min at 300 Watts, 10 min at 500 Watts, 183 min at 50 Watts, 15 min at 400 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :cUL, UL 1778, RoHS, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.6 inch
Weight :42.09 lbs
Dimensions & Weight (Shipping)
Shipping Width :12.9 inch
Shipping Depth :23.4 inch
Shipping Height :14.8 inch
Shipping Weight :50.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
