SMC1500C Technical Specifications

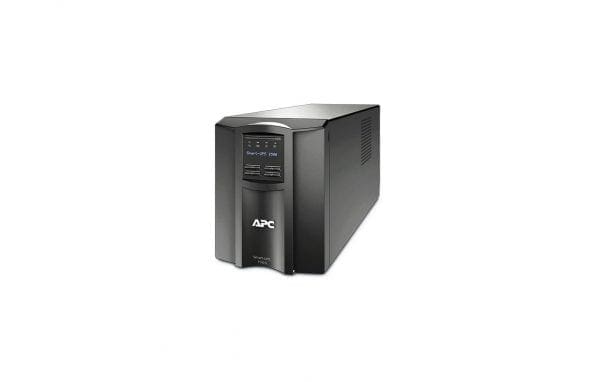

APC Smart-UPS C SMC1500C UPS 900W 1440VA with APC SmartConnect
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS C
Model :SMC1500C
Bundled with :APC SmartConnect
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Interface Provided
Interfaces :1 x management (USB), 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Power cable 6 ft
Software
Type :APC PowerChute Business Edition
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :900 watt
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Voltage Required :AC 110/120/127 volt
Input Voltage Range :AC 93 – 130 V
Input Voltage Range (Adjustable) :AC 85 – 136 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Switchover Time :6 millisecond
Surge Energy Rating :680 joules
Circuit Protection :Circuit breaker
Efficiency :98.1% at 50% Load, 98.3% at 100% Load, 98.3% at 75% Load, 97% at 25% Load
Power Device Features :Hot-swappable batteries, Lightning protection, LED indicators, Reset breaker, Auto restart, Cold-start function, Automatic self-test, Green Function, LCD display, Audible alarm, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15R (UPS)
Battery
Run Time (Up To) :7.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
Run Time Details
Run Time (Up To) :7.8 min at full load, 18 min at 500 Watts, 9.4 min at 800 Watts, 146 min at 50 Watts, 32.5 min at 300 Watts, 49.2 min at 200 Watts, 11.5 min at 700 Watts, 14.2 min at 600 Watts, 90 min at 100 Watts, 20.4 min at half load, 23.5 min at 400 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :150000 US Dollars
Compliant Standards :UL 1778, REACH, FCC Class B certified, ICES-003, RoHS, UL 1449, CSA C22.2 No. 107.1, CSA
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.6 inch
Weight :44.31 lbs
Dimensions & Weight (Shipping)
Shipping Width :13 inch
Shipping Depth :23.2 inch
Shipping Height :13 inch
Shipping Weight :49.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
