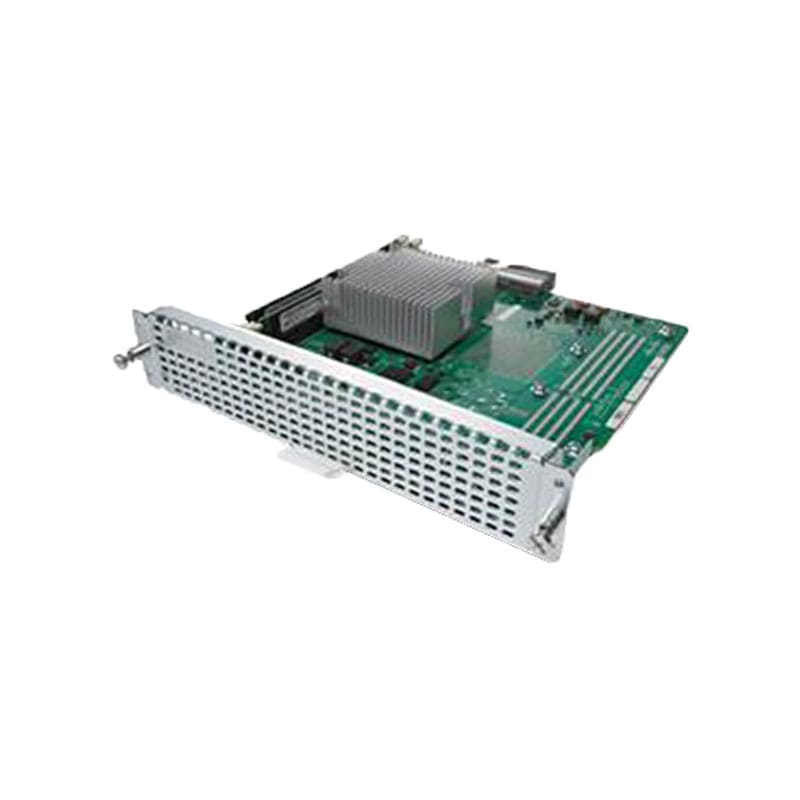

SM-X-PVDM-500 Technical Specifications
Cisco PVDM 768-Channel Voice DSP module Enhanced service module (SM-X)
Brand: Cisco
Product Line: Cisco PVDM
Model: 768-Channel
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Bus Voltage: 12 V
Compliant Standards: G.711, G.722, G.726, G.728, G.729, G.729a, G.729ab, G.729b
Connectivity Technology: Wired
Form Factor: Plug-in module
Host Interface: Enhanced service module (SM-X)
Product Type: Voice DSP module
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Product Information
Packaged Quantity: 1
Service Activation: No
Dimensions & Weight
Height: 1.6 inch
Weight: 28.5 ounce
Width: 8.5 inch
Depth: 8.1 inch
Physical Characteristics
Color Category: Silver
