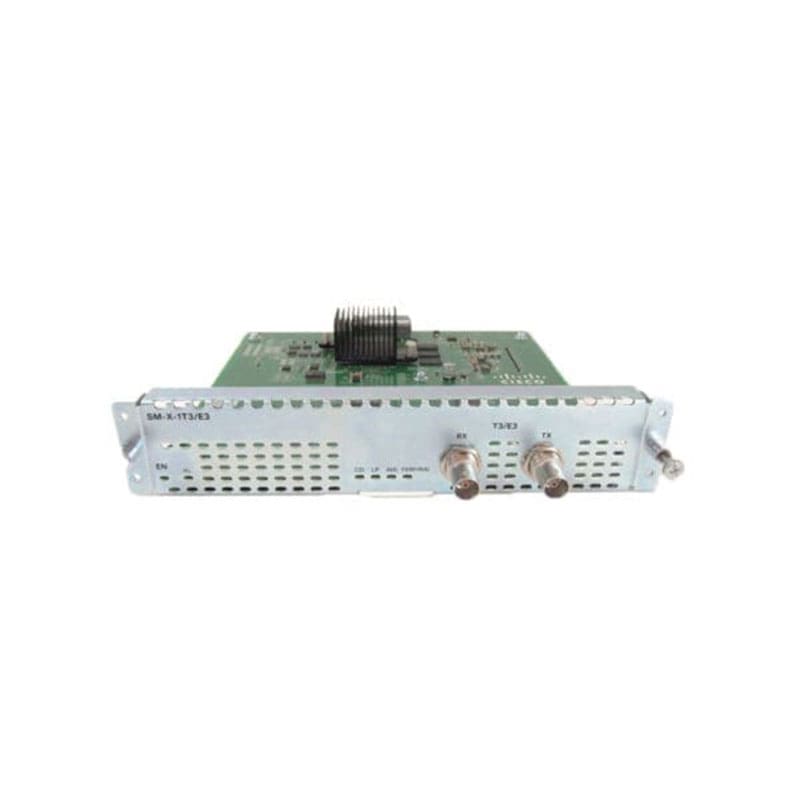

SM-X-1T3/E3 Technical Specifications
Cisco Enhanced Service Module Expansion module
Brand: Cisco
Product Line: Cisco
Model: SM-X-1T3/E3 Enhanced Service Module
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: Frame Relay, HDLC, PPP
Data Transfer Rate: 44.736 MBps
Features: Intrusion Detection System (IDS), NAT support, NetFlow, Quality of Service (QoS)
Form Factor: Plug-in module
Network Standard: IPSec
Product Type: Expansion module
Status Indicators: Alarm, Status
Connectivity
Interface Provided: 1 x T3/E3 – BNC – x 2
Technical Information
Line Coding Format: B3ZS, HDB3
Line Rate: T-3/E-3
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Service Activation: No
Dimensions & Weight
Height: 1.5 inch
Width: 7.1 inch
Depth: 7.2 inch
