SM-ES2-24= Technical Specifications

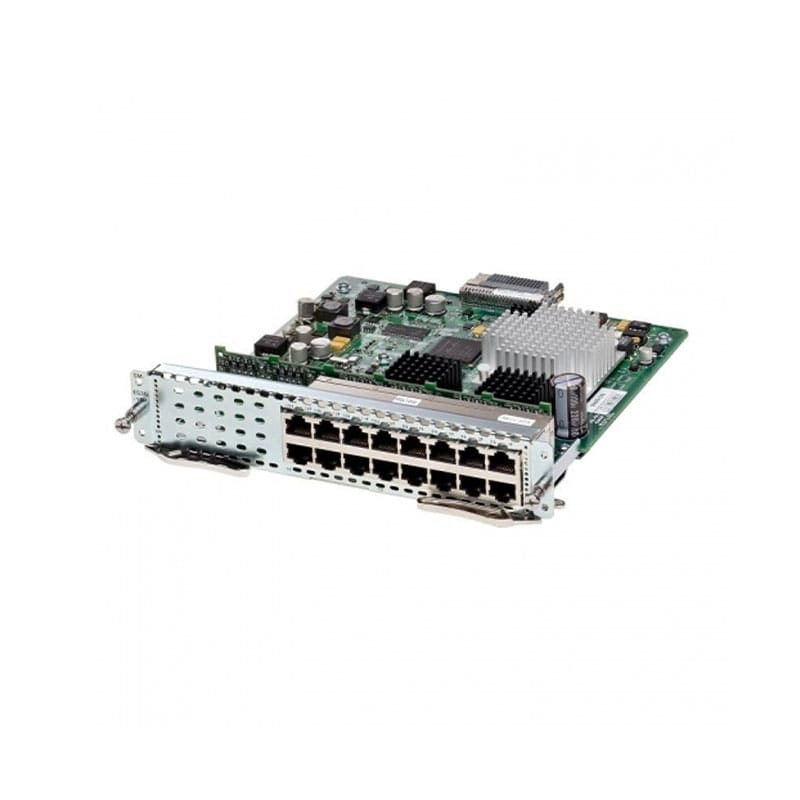

Cisco Enhanced EtherSwitch Service Module Entry Level switch 23 ports managed plug-in module
Brand: Cisco
Product Line: Cisco Enhanced EtherSwitch Service Module
Model: Entry Level
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Compliant Standards: IEEE 802.1x
Form Factor (Hubs & Switches): Plug-in module
Manageable: Yes
Ports: 23
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: Fast Ethernet
Expansion Slots
Compatible Slots Required: 1 x expansion slot
Connectivity
Interface Provided: 1 x 1000Base-T RJ-45, 23 x 100Base-TX RJ-45
Port Quantity: 23
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 90%
Product Information
Packaged Quantity: 1
Ports (2nd) Quantity: 1
Dimensions & Weight
Height: 1.6 inch
Weight: 5.51 lbs
Width: 8.1 inch
Depth: 8.1 inch
