SG-SAS6-R-INT-Z Technical Specifications

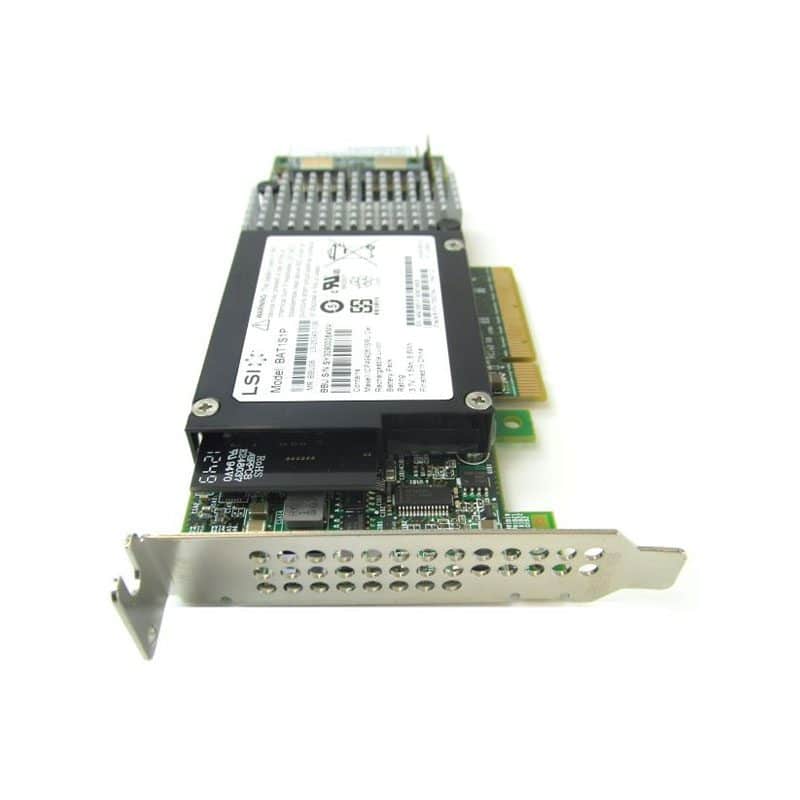

Sun Storage 6 Gb/s SAS RAID PCIe Host Bus Adapter Storage Controller (RAI
Manufacturer
Sun Microsystems
Brand
Sun
Product Line
Sun Storage
Model
6 Gb/s SAS RAID PCIe Host Bus Adapter
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 2.0 x8
Low Profile
Low profile
Data Transfer Rate
6 Gbit/s
Interface
SATA 3Gb/s / SAS 6Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive
Max Storage Devices Qty
248
Buffer Size
512 megabyte, 512 megabyte
RAID Level
RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
2 x SATA 3Gb/s / SAS 6Gb/s – 36 pin 4i Mini MultiLane (internal), 2 x SATA 3Gb/s / SAS 6Gb/s – 36 pin 4i Mini MultiLane SAS (SFF-8087) (internal)
Slot Required
Compatible Slots
1 x PCI Express 2.0 x8 – low-profile
Power Device
Type
None
System Requirements
OS Required
Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Oracle Enterprise Linux, Red Hat Enterprise Linux 4.7 or later, SunSoft Solaris 10 (10/09), SuSE Linux Enterprise Server 10 SP2, SuSE Linux Enterprise Server 11, VMware ESX 4.0 update 1, VMware ESXi 4.0 update 1
