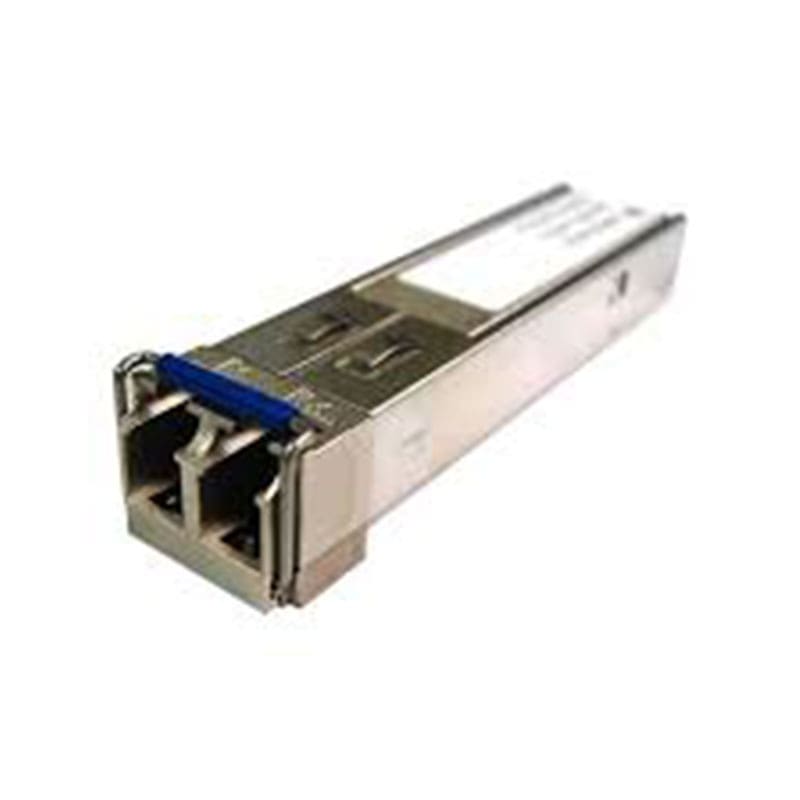

SFP-GE40KM Technical Specifications
Juniper 1Gbps 1000Base-EX 40km Duplex Transceiver Module
Brand: Juniper
Part Number: SFP-GE40KM
Condition: Factory New Sealed
Availability: In Stock
Ships: Typically within 2 Business Days
Form Factor: SFP
Data Rate: 1.25Gb/s
Wavelength: 1310 nm
Fiber Type: SMF
Max Distance: 40 km
Optical Components: DFB/PIN
Transmitter Power: -5 ~ 0 dBm
Extinction ratio: > 9 dB
Receiver Sensitivity: < -24 dBm Receiver Overload: > 0 dBm
Connector: LC Duplex
Digital Diagnostic Monitoring: YES
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Weight: 0.025 kg
Application: 1x Fiber Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications, Router/Server Interface, Other Optical Links
Compliance
IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
