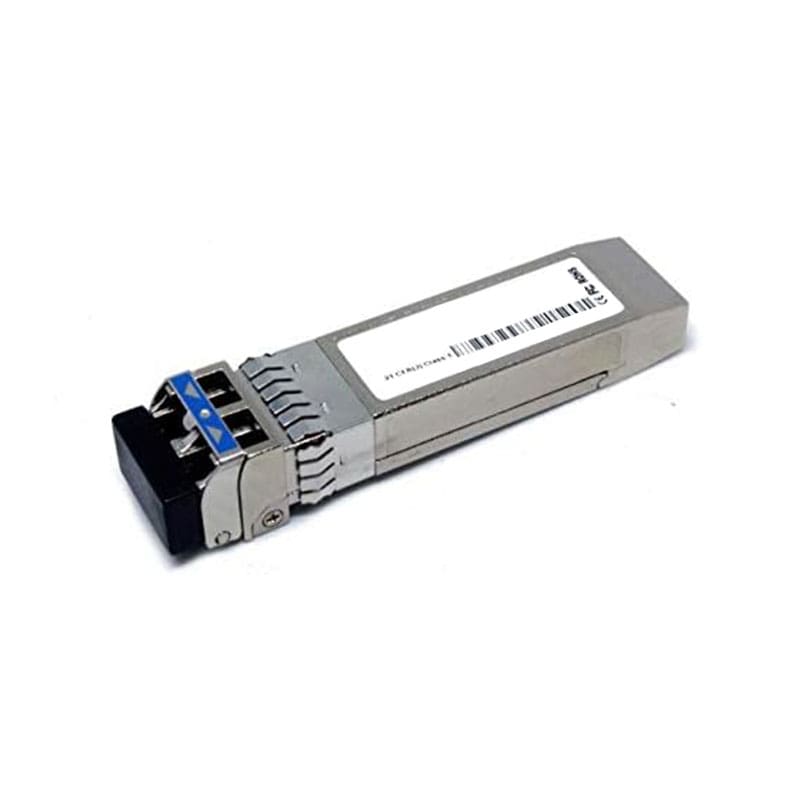

SFP-10G-LR-P Technical Specifications
Cisco SFP+ LR, 10 km, 1310 nm, DDM, LC Duplex, Singlemode
Form Factor: SFP+
Type: Single mode
Standard: LR
Data Rate: 10G
Distance: 10 km
Connector: LC Duplex
Power budget: (dB)8,4
Tx Power Min: (dBm)-6
Tx Power Max: (dBm)-0,5
Rx Sensitivity: (dBm)-14,4
Temperature Range: 0°C – 70°C
Diagnostics: Yes
Power Consumption: (W)1,2
Wavelength: (nm)1310
Laser: DFB
Receiver: PIN
Modulation: NRZ
Protocol: 10G Ethernet
Warranty: Lifetime
Data Rate 10 Gbps
Transmitter Type: DFB
