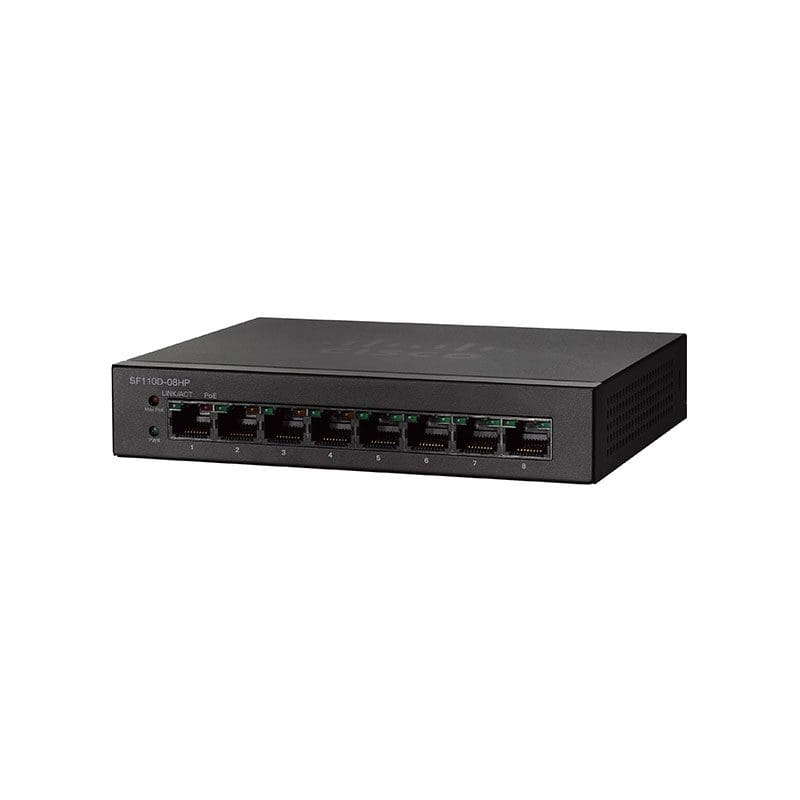

SF110D-08HP Technical Specifications
Cisco Small Business 110 Series Unmanaged Switches
General
Product Series SF110
Product Line : Cisco Small Business
Device type: Switch – 8 ports
Enclosure type: Desktop
Ports: 8 x 10/100
Power over Ethernet: (PoE) PoE
Performance Switching capacity: 1.6 Gbps ¦ Forwarding performance (64-byte packet size) : 1.2 Mpps
MAC address table size 1000 entries
Jumbo frame support: Yes
Features: Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x, 802.3af
Status indicators Power, link/activity, PoE, cable diagnostics, loop detection
Expansion and Connectivity
Interfaces 8 x 10Base-T/100Base-TX – RJ-45 – PoE
