SEDC1500M/3840G Technical Specifications

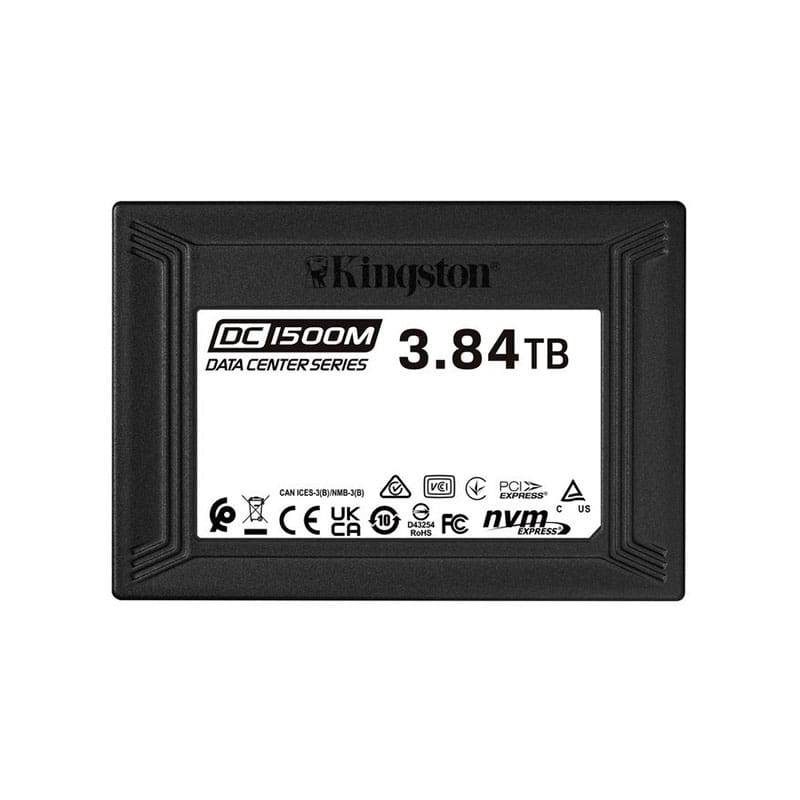

Kingston DC1500M 3.84Tb 2.5inch U.2 PCI Express NVMe SSD
Manufacturer : KINGSTON
Manufacturer Part Number : SEDC1500M/3840G
Product Series : Dc1500m
Product Type : Solid State Drive
Manufacturer : KINGSTON Technology Company
Product Name: Enterprise Class U.2 Nvme Ssd
Technical Information :
Product Type : Solid State Drive
Device Supported : Storage System
Storage Capacity : 3.84tb
Drive Type : Internal
Form Factor : 2.5inch
Drive Interface : U.2 (sff-8639) Nvme
Drive Interface Standard : Pcie Nvme 3.0 X4
Endurance Type : Mixed Use
Nand Flash Memory Type : 3d Triple-level Cell (tlc)
Performance :
Maximum Read Transfer Rate : 3100 Mb/s
Maximum Write Transfer Rate : 2700 Mb/s
4kb Random Read : 480,000 Iops
4kb Random Write : 210,000 Iops
Endurance (dwpd) : 1
Mtbf : 2,000,000 Hours
Interfaces & Ports :
Drive Interface : U.2 (sff-8639) Nvme
Drive Interface Standard : Pcie Nvme 3.0 X4
Environmental Certification : Rohs
Physical Characteristics :
Height : 0.6inch
Width : 2.7inch
Depth : 3.9inch
