SDATB8Y-512G Technical Specifications

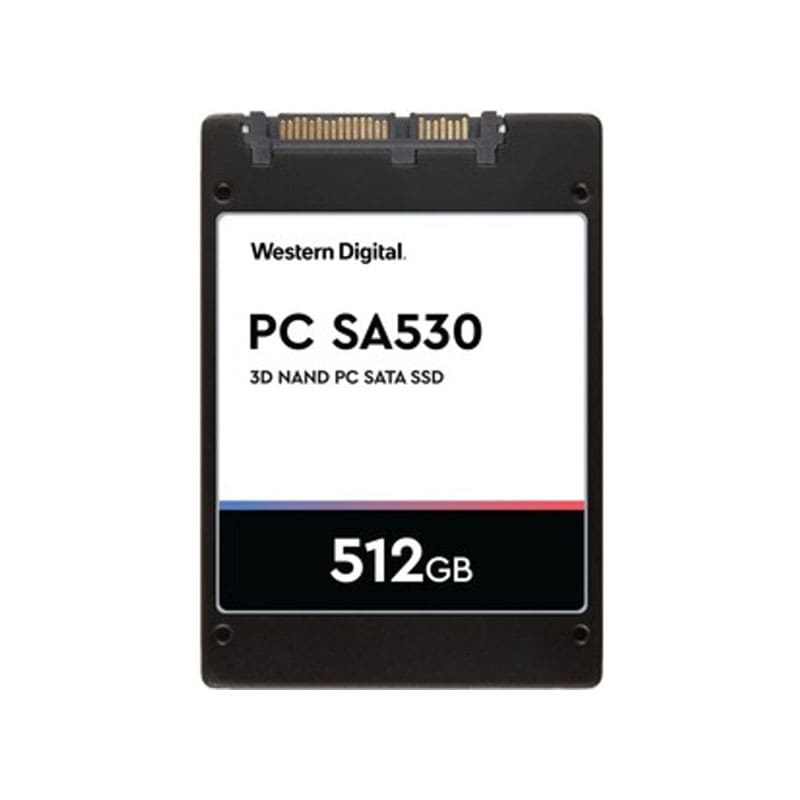

Western Digital PC SA530 512GB SATA 6Gbps 2.5-inch Internal SSD
Brand WD
Product Line WD PC SA530
Manufacturer SanDisk
Storage
Data Transfer Rate (Hard Drive) 600 MBps
Endurance Type 200 TB
Form Factor (Short) 2.5″
Form Factor (Short) (metric) 6.4 cm
Hard Drive Capacity 512 GB
Hard Drive Features
96-layer 3D NAND technology, nCache 2.0 technology, Password authentication, Physical Security ID (PSID)
Hard Drive Type
Internal hard drive
HD Interface
Serial ATA-600
Max Internal Data Transfer Rate 560 MBps
Max Write Transfer Rate 530 MBps
Storage Interface Serial ATA-600
4KB Random Read 95000 IOPS
4KB Random Write 84000 IOPS
Connectivity
Interface Provided
1 x SATA 6 Gb/s
Power
Power Consumption
2050 mW (read), 3350 mW (write), 52 mW (active), 56 mW (sleep), 7 mW (DevSleep)
Technical Information
Compatible Bay 2.5″
Hard Drive Form Factor 2.5″
Hard Drive Form Factor (metric) 6.4 cm
Encryption 256-bit AES
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-67 degree Fahrenheit
MTBF
1,750,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Vibration Acceleration (Non-operating)
4.9 gram
Vibration Acceleration (Operating)
5 gram
Vibration Frequency Range (Non-operating)
7-800 Hz
Vibration Frequency Range (Operating)
10-2000 Hz
Product Information
Encryption Details
TCG Opal Encryption 2.01
Hardware Encryption
Yes
Packaged Quantity 1
Product Type Solid state drive
Dimensions & Weight
Height 0.3 inch
Weight 1.32 ounce
Width 3.9 inch
Depth 2.7 inch
