SC840H-001 Technical Specifications

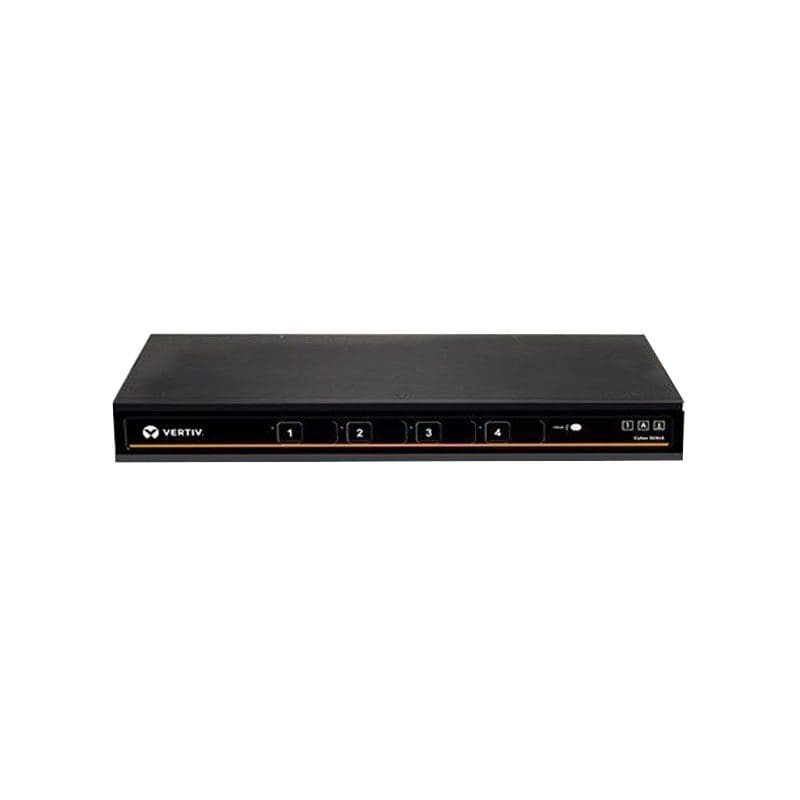

Vertiv Cybex SC840H Secure Desktop 4-Port Secure Desktop KVM, HDMI, (3) USB 3.0 Ports, Audio
Dimensions & Weight
Depth :4.9 in
Height :1.7 in
Weight :3.53 lbs
Width :13.5 in
KVM
Keyboard Mouse Interface :PS/2, USB
KVM Local Users Qty :1 local user
KVM Max Supported Video Resolution :3840 x 2160
Ports
Qty :4
Type :KVM
Power Device
Nominal Voltage :AC 120/230 V
Type :Internal power supply
Environmental Parameters
Humidity Range Operating :0 – 80% (non-condensing)
Max Operating Temperature :104 °F
Max Storage Temperature :140 °F
Min Operating Temperature :32 °F
Min Storage Temperature :-4 °F
Header
Brand :Cybex
Compatibility :PC
Country Kits :North America
Manufacturer :Avocent (Apex/Cybex)
Model :SC840H
Packaged Quantity :1
Product Line :Cybex
Interface Provided
Connector Type :Mini-jack
Type :Headphones input
Connector Type :Type A
Qty :2
Connector Type :Type B
Type :Keyboard (USB) / mouse (USB)
Qty :1
Type :Mouse (PS/2)
Qty :4
Type :HDMI input
Type :HDMI output
Type :Headphones output
Type :Keyboard (PS/2)
Miscellaneous
Color Category :Black
Compliant Standards :cUL, FCC Class B certified, RCM, VCCI
Networking
Form Factor :Desktop
Ports Qty :4
Subcategory :KVM
Subtype :KVM
Type :KVM switch
