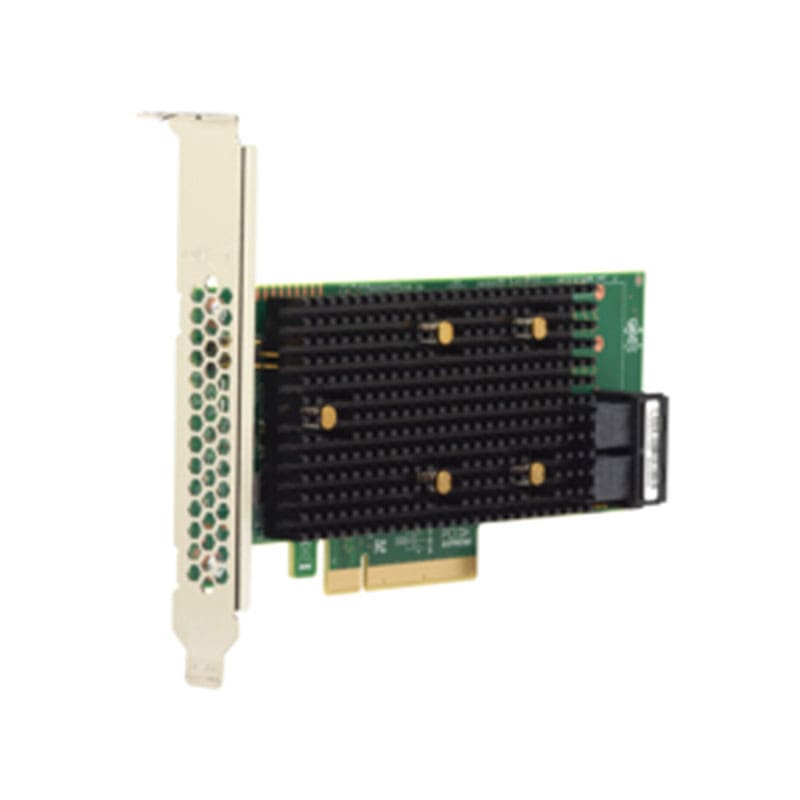

SAS9400-8I Technical specifications
Broadcom 12GB/S SAS/SATA/NVME TRI-Mode PCIE HBA
Manufacturer: Broadcom
Type: Controller
Sub-Type: SAS-SATA
Technical Information
Host Bus Type X8 Lane PCI Express® 3.1
Devices Supported SAS/SATA: 1024, NVME: 24
Internal Connectors 2 HD MINI-SAS SFF8643 (Horizontal Mount)
Internal Ports 8
Operating Temperature 10° To 55° C
Operating Voltage +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux, Vmware.
Pci Power Typical: 10.05w
Cable Support Passive Copper
I/O Controller Sas3408
Mtbf > 4,500,000 Hours At 40° C
Operating Humidity 20% To 80% Non-Condensing
