SAS9285-8E Technical Specifications

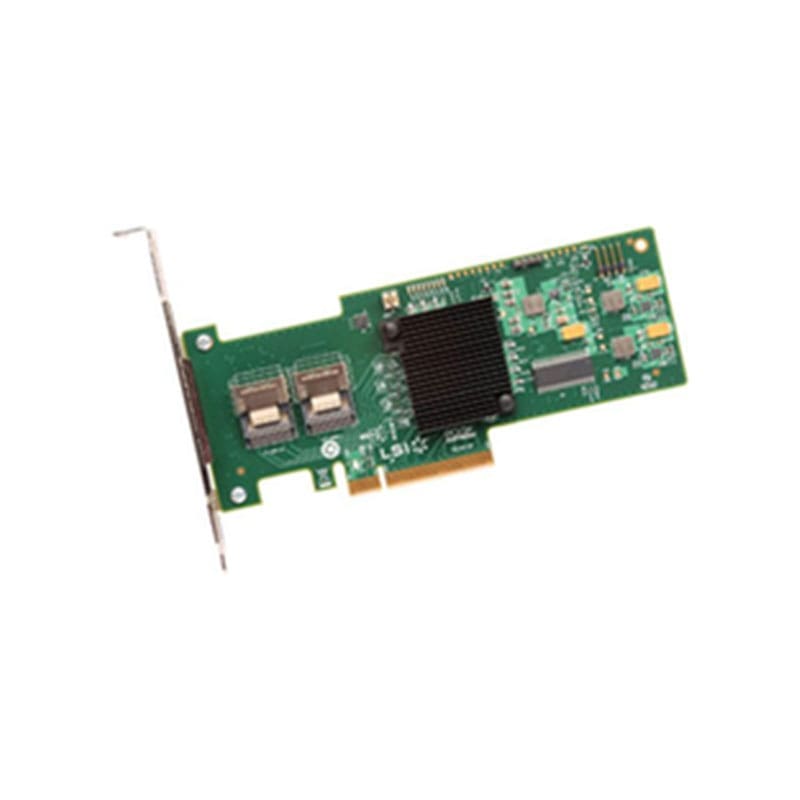

Lsi Logic Megaraid 8-port Pcie 2.0 Sff-8088 Sata+sas Raid Controller
Model Number Or SKU# SAS9285-8E
Brand Name: Lsi Logic
Product Type: Controller
Product Name: SAS-SATA
Technical Information
Host Interface: Pci Express 2.0 X8
Data Transfer Rate: Up To 600 Mbps Per Port
Interfaces: # Serial Attached Scsi
# Serial Ata/600
Raid Supported: Yes
Raid Levels: 0 . 1 . 5 . 6 . 10 . 50 . 60
Drive Supported: # 64 X Logical
# Up To 240
Platform Supported: # Pc
# Sparc
Memory:
Standard Memory: 1 Gb Ddr3 Sdram
Interfaces/Ports:
Ports: 2 X Sff-8088 Sas 600 – Mini-Sas External
Physical Characteristics:
Form Factor: Low-Profile Plug-In Card
Dimensions: 2.5 Height X 6.6 Width
