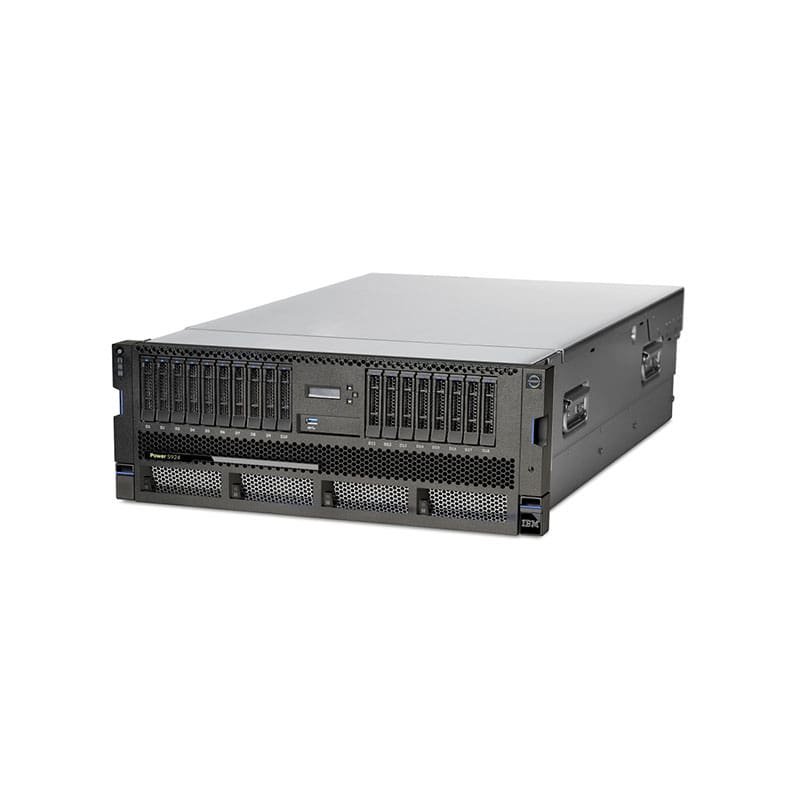

S924 Technical Specifications
IBM Power System
Manufacturer: IBM
Brand: IBM
Microprocessors: 2x POWER9 CPUs 8, 10, 12 cores
Level 2(L2) cache per core: 512K
Level 3(L3) cache per core: 120MB
RAM (memory): Up to 4TB, from 32 DDR4 IS DIMM @ 2666, 2400, and 2133 Mhz
Processor-to-Memory Bandwidth: Up to 170 GB/s per socket, 340 GB/s per system
L2 to L3 Cache Bandwidth: 7 TB/s on chip bandwidth
Operating Systems: AIX 7.2 TL2
Power requirements
Operating voltage: 1400 W PSU: 200 – 240 V AC
Operating frequency: 47/63 Hz
System dimensions
Width: 482 mm (18.97 in.)
Depth: 769.6 mm (30.3 in.)
Height: 173.3 mm (6.8 in.)
Weight: 39.9 kg (88 lb)
