RXKM7 Technical Specifications

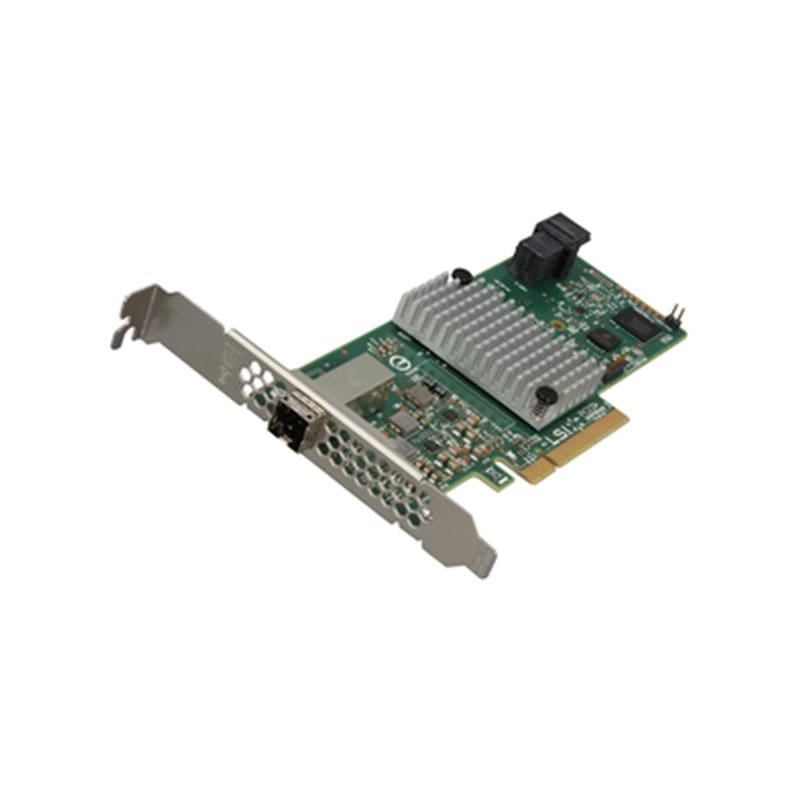

Dell 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter
Manufacturer: Dell
Part Number or SKU# RXKM7
Device Type: Host Bus Adapter
Technical Information of Dell 12GBPS Host Bus Adapter
Internal Connectors: 1 Mini-SAS Hd SFF8643
Internal Ports: 4
Devices Supported: 1024 Non-Raid SAS/SATA Devices
External Connectors: 1 Mini-SAS Hd SFF8644
Host Bus Type: X8 Lane PCI-E 3.0
Physical Dimensions: Low Profile (2.6 inch X 6.0 inch)
Fusion MPT Support: Fusion MPT 2.5
I/o Controller: lsi SAS3008
Operating Humidity: 5% To 90% Non-condensing
Operating Temperature: 0°c To 55°c
Operating Voltage: +12v +/-8%, 3.3v +/-9%
PCI Power: 14.2w
Cable Support: passive Copper, Active Optical (external Only)
Data Transfer Rates: 12GBPS SAS-3 Compliant
