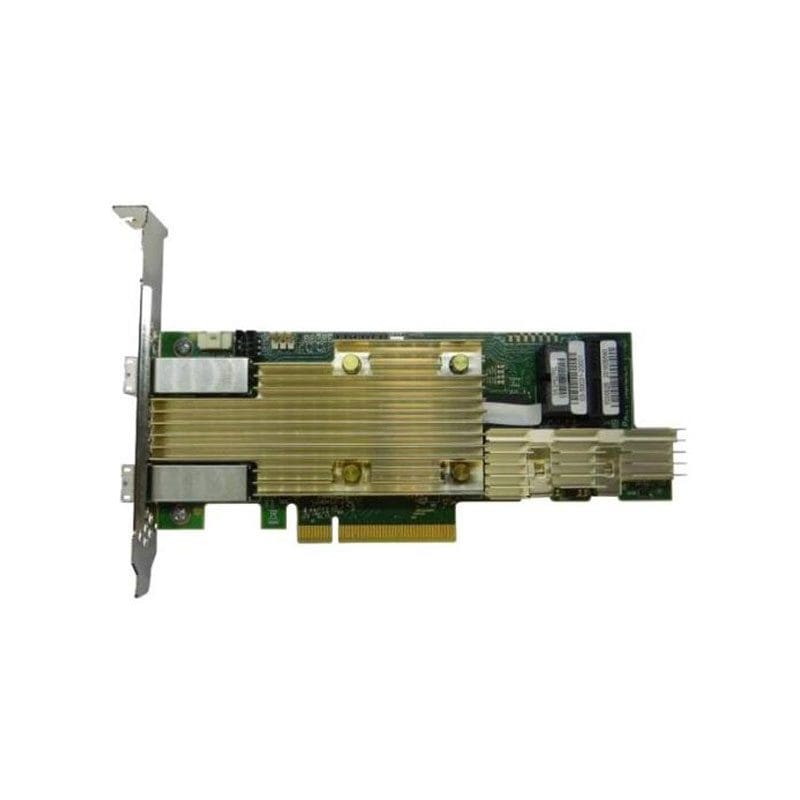

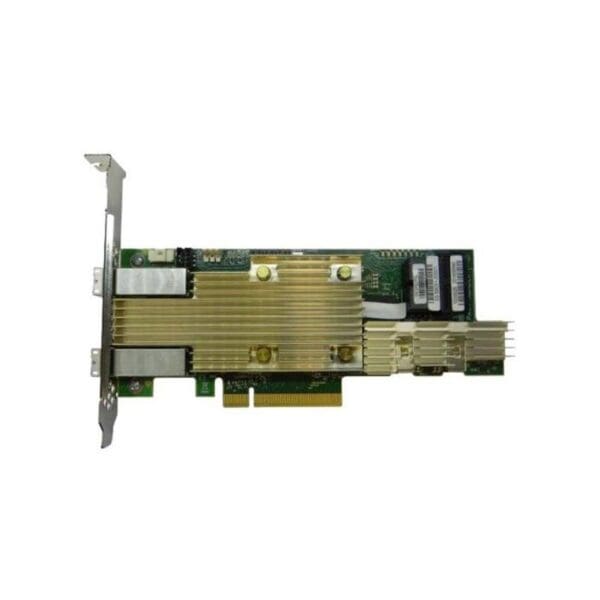

RSP3MD088F Technical Specifications
Intel RAID Controller Storage Controller (RAID) SATA 6Gb/s / SAS 12Gb/s / PCIe PCIe 3.0 x8
Brand : Intel
Manufacturer Part Number : RSP3MD088F
Interface SATA 6Gb/s / SAS 12Gb/s / PCIe
Data Transfer Rate 12 Gbit/s
Buffer Size 4 GB
Supported Devices Disk array (RAID)
Channel Qty 16
Max Storage Devices Qty 255
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Manufacturer Warranty
Service & Support Limited warranty – 3 years
General
Device Type Storage controller (RAID) – plug-in card – low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe – 4 x Mini SAS HD (SFF-8643) (internal) ¦ 8 x SATA 6Gb/s / SAS 12Gb/s / PCIe (external)
