RS25DB080 Technical Specifications

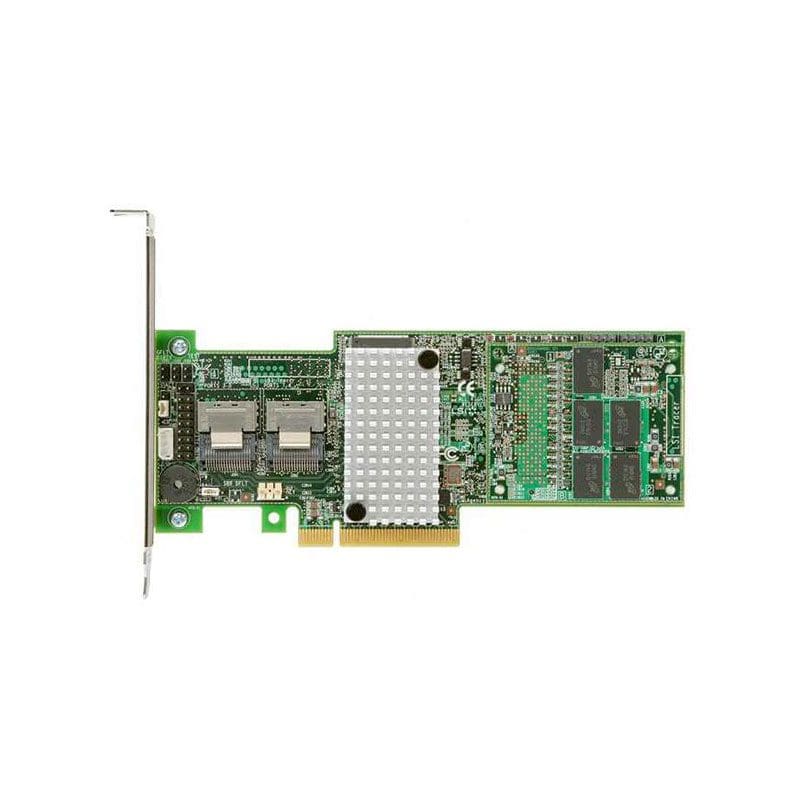

Intel 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 Low Profile MD2 RAID 0/1/5/6/10/50/60 Controller Card
Manufacturer Part Number RS25DB080
Brand Name Intel
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
