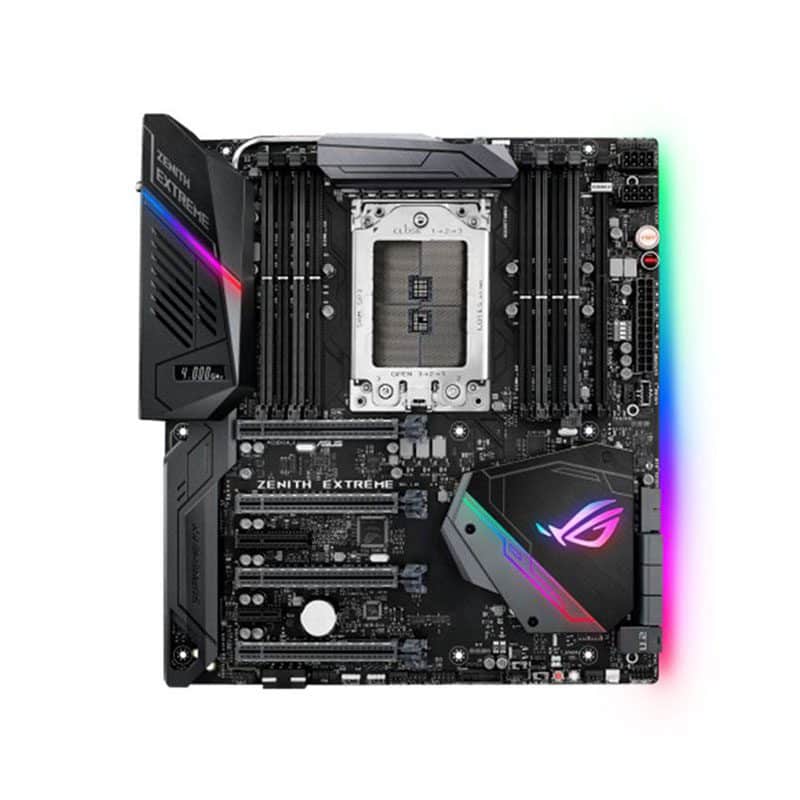

Refurbished ROG-ZENITH-EXTREME Technical Specifications
ASUS sTR4 AMD X399 SATA 6Gb/s USB 3.1 Extended ATX AMD Motherboard
Model
Brand
ASUS
Series
ROG
Model
ZENITH EXTREME
Supported CPU
CPU Socket Type
sTR4
CPU Type
Ryzen Threadripper Series
Chipsets
Chipset
AMD X399
Memory
Number of Memory Slots
8×288pin
Memory Standard
DDR4 3600(O.C.)/ 3200(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported
128GB
Channel Supported
Quad Channel
Expansion Slots
PCI Express 3.0 x16
4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *
* The PCIE_x8/x4_4 slot shares bandwidth with U.2. In 4-Way configuration, if the PCIE_x8/x4_4 is used in x8 mode, U.2 port will be disabled.
PCI Express x4
1 x PCIe 2.0 x4
PCI Express x1
1 x PCIe 2.0 x1
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x U.2 port**
* ROG DIMM.2 Card supports 2 x M.2 SSDs.
** U.2 Shares bandwidth with the PCIE_x8/x4_4 slot.
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel i211AT
Second LAN Chipset
ROG AREION 10G Ethernet Card
Max LAN Speed
10Gbps + 10/100/1000Mbps
Wireless LAN
Wi-Fi 802.11 a/b/g/n/ac + WiGig 802.11 ad *
Supports MU-MIMO
Supports dual band frequency 2.4/5 GHz + 60 GHz
Up to 4600 Mbps transfer speed
* Wi-Fi 802.11 ad (WiGig) is only available in certified countries.
Bluetooth
Bluetooth 4.1
Rear Panel Ports
RJ45
1 x RJ45
USB 3.1
8 x USB 3.1 Gen1 ports [blue]
1 x USB 3.1 Gen2 port (1 x Type-A [red])
USB Type-C
1 x USB 3.1 Gen2 port (1 x Type-C [black])
S/PDIF Out
1 x Optical
Audio Ports
5 x LED-illuminated audio jacks
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x USB 3.1 Gen 2 front panel connector
Other Connectors
1 x Aura Addressable Strip Header(s)
1 x ReTry jumper
1 x Safe Boot jumper
2 x Aura RGB Strip Headers
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x Slow Mode switch(es)
2 x Thermal sensor connector(s)
1 x LN2 Mode header(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Reset button(s)
1 x LN2 Mode switch(es)
1 x LN2 Mode jumper(s)
