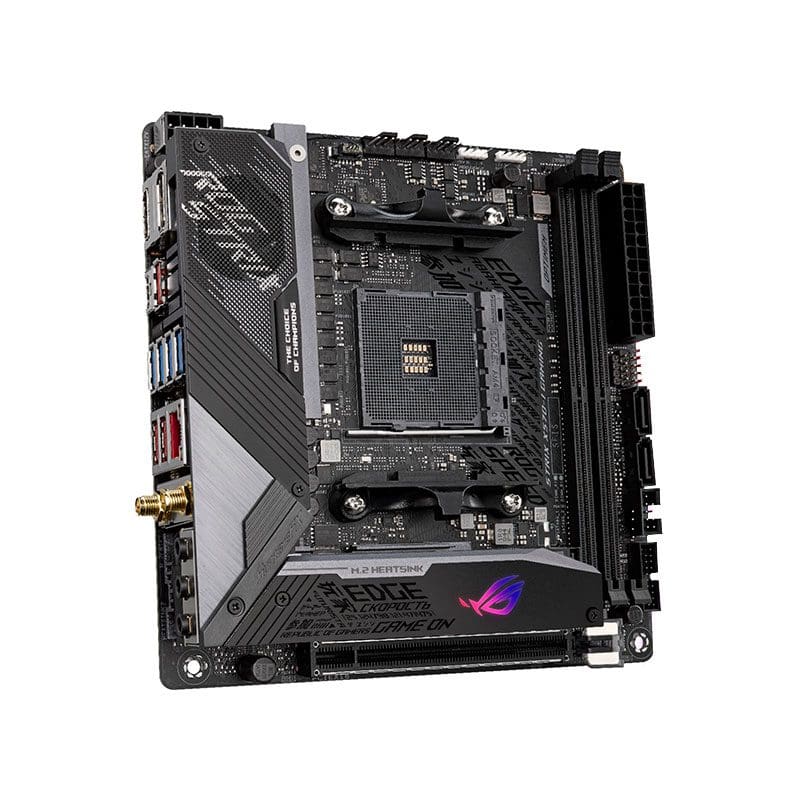

ROG STRIX X570-I GAM Technical Specifications
ASUS Republic of Gamers Strix X570-I
CPU
Chipset AMD X570
CPU Socket AM4
Back Panel I/O
USB 4 x USB 3.1 / USB 3.2 Gen 1 Type-A
3 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Display 1 x HDMI 2.0
1 x DisplayPort 1.4
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Intel I211-AT Gigabit
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 2 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3800, 4000, 4133, 4266, 4400, 4600, 4800 MHz
Maximum Capacity 64 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 4 x SATA III
M.2 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
U.2 None
Optane Memory Support No
RAID Support RAID 0, 1, 10
Internal I/O
Expansion Slots 1 x PCIe x16 (x16 mode)
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support None
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin System
2 x 4-Pin Assistant
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security TPM Module
LED Header 2 x RGB
Audio 1 x Speaker
Diagnostics Clear CMOS
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP
Audio
Audio Codec SupremeFX S1220A (8-Channel)
Wireless
Bluetooth 5.0
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor Mini-ITX
Dimensions 6.69 x 6.69″ / 17 x 17 cm
