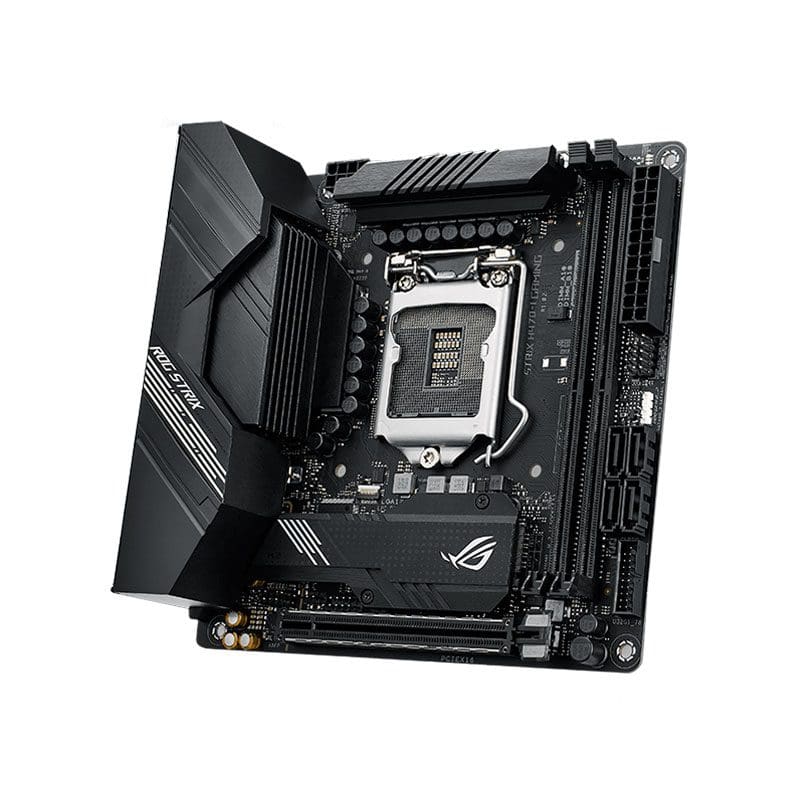

ROG STRIX H470-I GAMING Technical Specifications
ASUS LGA 1200 Intel H470 SATA 6Gb/s Mini ITX Intel Motherboard
Model
Brand
ASUS
Series
ROG
Model
STRIX H470-I GAMING
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel H470
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots
2×288pin
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
* when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
ROG SupremeFX Surround Sound High Definition Audio CODEC
Audio Channels
7.1 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset
Intel I219-V
Second LAN Chipset
Realtek RTL8111H
Max LAN Speed
Dual 10/100/1000Mbps
Wireless LAN
Intel Wi-Fi 6 AX201
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Up to 2.4Gbps transfer speed
Rear Panel Ports
Back I/O Ports
1 x Intel I219-V 1Gb Ethernet
1 x Realtek RTL8111H 1Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (red) (Type-A + USB Type-C)
4 x USB 3.2 Gen 1
1 x USB 2.0 *
5 x Audio jack(s)
* 1 x audio USB Type-C
