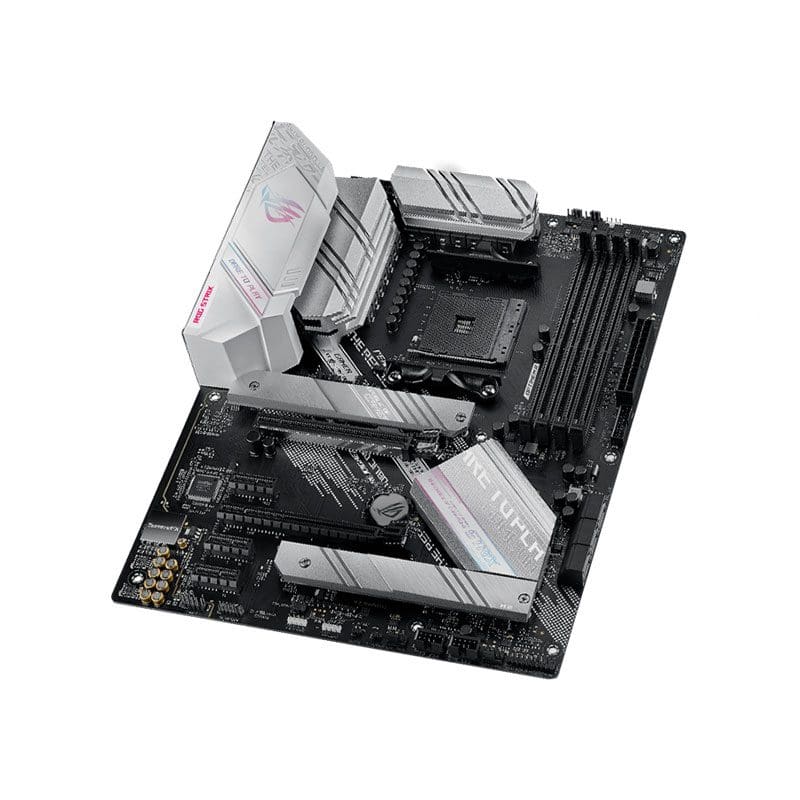

ROG STRIX B550-A GAMING Technical Specifications
ASUS ROG STRIX B550 I
Header
Manufacturer :Asus Components
Brand :ASUS
Product Line :ASUS
Model :ROG STRIX B550-I GAMING
Packaged Quantity :1
Processor
Installed Qty :0
Max Supported Qty :1
Mainboard
Form Factor :Mini ITX
Processor Socket :Socket AM4
Compatible Processors :Ryzen
Compatible Processors Comments :Supports 3rd Generation Ryzen
Chipset Type :AMD B550
Supported RAM Technology :DDR4 SDRAM
Supported RAM Speed :4400 MHz (O.C.), 3400 MHz (O.C.), 2800 MHz, 4800 MHz (O.C.), 3466 MHz (O.C.), 4266 MHz (O.C.), 2666 MHz, 2400 MHz, 4600 MHz (O.C.), 3800 MHz (O.C.), 4133 MHz (O.C.), 3000 MHz, 4000 MHz (O.C.), 5000 MHz (O.C.), 2133 MHz, 3200 MHz, 3600 MHz (O.C.)
Supported RAM Integrity Check :ECC
Supported RAM (Registered or Buffered) :Unbuffered
RAM Slots :2 DIMM slots
Power Connectors :8-pin ATX12V connector, 24-pin main power connector
Mainboard Features
BIOS Type :AMI
BIOS Features :BIOS FlashBack, ASUS EZ Flash 3, UEFI BIOS
Sleep / Wake Up :Wake on LAN (WOL), Wake on PME
Hardware Features :ASUS TPU (TurboV Processing Unit), ASUS Q-Connector, Q-Code, Q-DIMM, ASUS SafeSlot, DIY Friendly Design, ASUS OptiMem II, Sonic Radar III, ASUS Aura Sync, GameFirst VI, Pre-mounted I/O shield, Armoury Crate, Q-LED, Audio jack detect technology, FlexKey button, ASUS DIGI+ VRM, Jack retasking, ASUS Fan Xpert 4, LANGuard, ASUS EPU (Energy Processing Unit), Sonic Studio III, M.2 heatsink, ProCool II Power Connector, ASUS Q-Design, ASUS EZ DIY, CrashFree BIOS 3, Q-Slot, Preboot eXecution Environment (PXE)
Interfaces
Storage :M.2 socket, Serial ATA-600 (RAID)
Storage Ports :4 x SATA-600 (RAID), 2 x M.2
USB 3.0 / FireWire :USB-C Gen2, USB 3.2 Gen 2, USB-C, USB-C Gen1, USB 3.2 Gen 1
USB / FireWire Ports Configuration (Active) :1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 1 x USB 2.0 + 1 x USB-C
USB / FireWire Ports Configuration (Headers) :1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
RAM
Max Supported Size :64 GB
Features :Dual channel memory architecture
Video Output
Type :Graphics adapter (CPU required)
Audio Output
Type :Sound card
Audio Codec :SupremeFX (S1220A)
Audio :High Definition Audio (8-channel)
Compliant Standards :DTS Sound Unbound, High Definition Audio
Networking
Network Controller :Intel I255-V / Intel AX200
Network :2.5 Gigabit Ethernet, Bluetooth 5.1, 802.11a/b/g/n/ac/ax
Data Link Protocol :Bluetooth 5.1, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11ax, 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a
Expansion Slots
Expansion Slots :1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16
