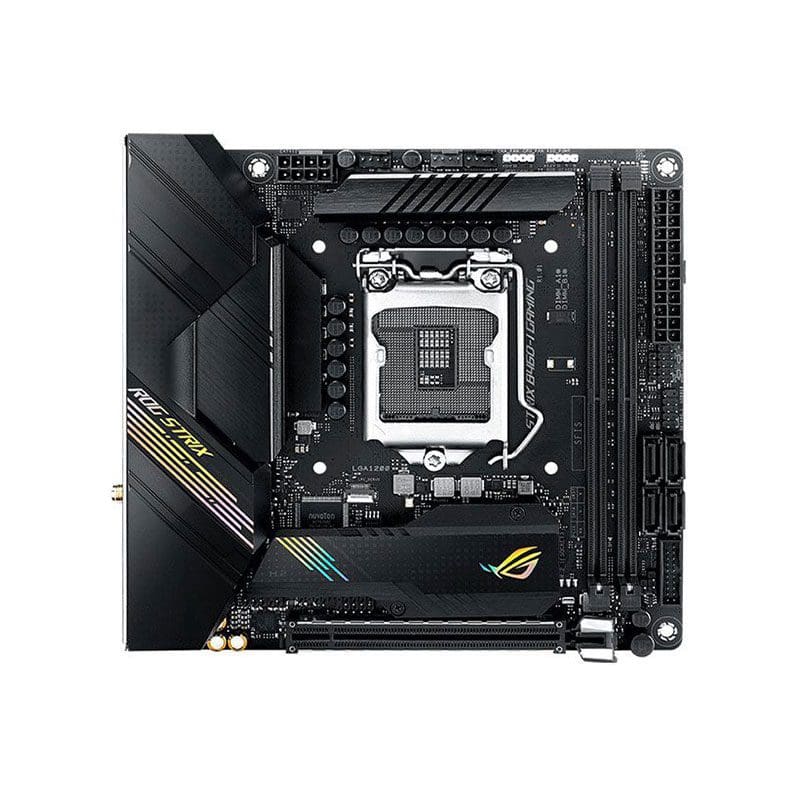

Refurbished ROG-STRIX-B460-I-GAMING Technical Specifications
GAMING ASUS LGA 1200 Intel B460 SATA 6Gb/s Mini ITX Intel Motherboard
Model
Brand
ASUS
Series
ROG
Model
STRIX B460-I GAMING
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots
2×288pin
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
* when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
ROG SupremeFX Surround Sound High Definition Audio CODEC
Audio Channels
7.1 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Wireless LAN
Intel Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Up to 2.4Gbps transfer speed
Rear Panel Ports
Back I/O Ports
1 x Intel I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
6 x USB 3.2 Gen 1
1 x USB 2.0 *
5 x Audio jack(s)
* 1 x audio USB Type-C
