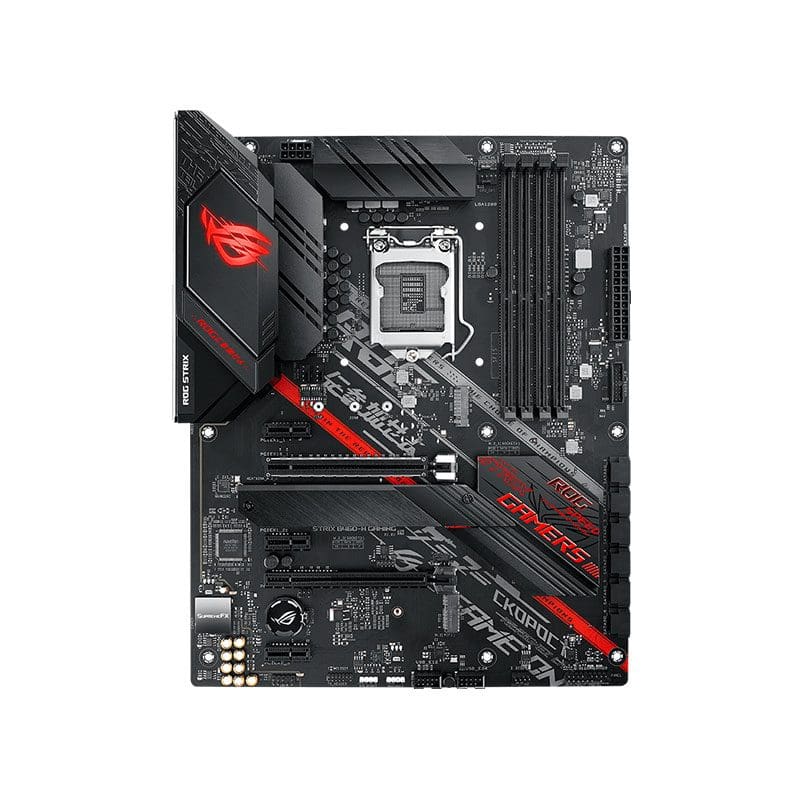

ROG STRIX B460-H GAMING Technical Specifications
ASUS LGA 1200 Intel B460 SATA 6Gb/s ATX Intel Motherboard
Model
Brand
ASUS
Series
ROG
Model
STRIX B460-H GAMING
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
Intel 10th Gen Processors
1 x PCIe 3.0 x16
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
* The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied.
PCI Express x1
3 x PCIe 3.0 x1 *
* The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E).
Other Slots
M.2 slot only (Key E) (Support PCIe interface)*
* Wi-Fi module is sold separately.
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
Intel B460 Chipset:
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
* When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
ROG SupremeFX Surround Sound High Definition Audio CODEC
Audio Channels
7.1 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x Intel I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
