RMS3VC160 Technical Specifications

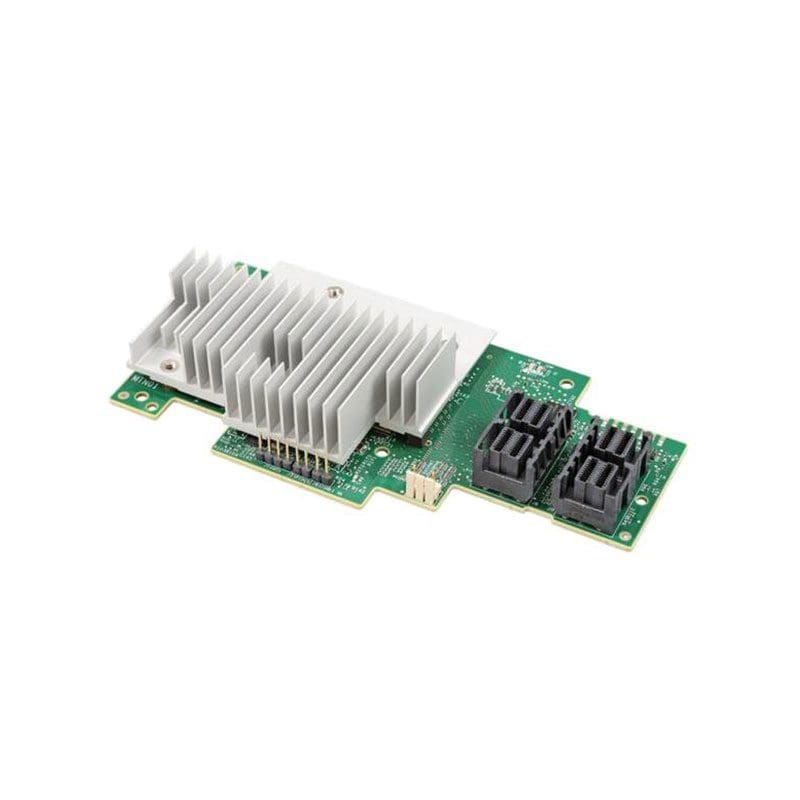

Intel 16-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Storage Connector RAID JBOD Controller Card Module
Manufacturer Part Number RMS3VC160
Brand Name Intel
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels JBOD
Interfaces/Ports
Total Number of SAS Ports 16
Number of SAS Ports (Internal) 16
Physical Characteristics
Form Factor Mezzanine
Miscellaneous
Platform Supported PC
Linux
