RBD53iG-5HacD2HnD-US Technical Specification

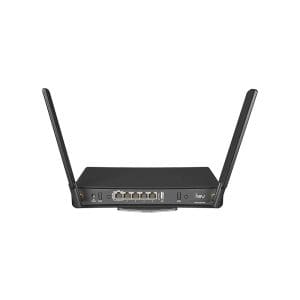

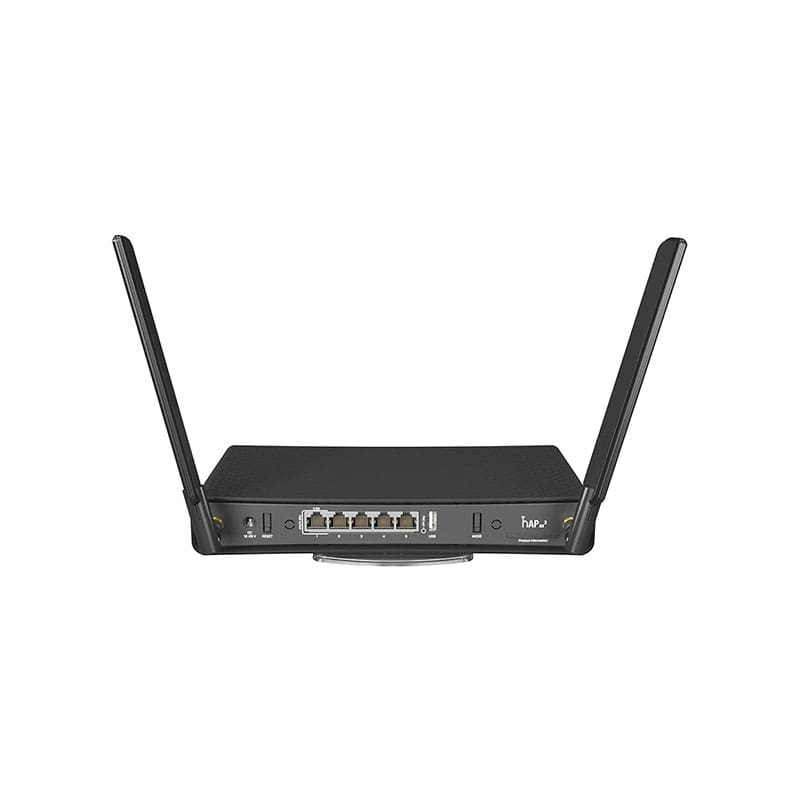

MikroTik hAP ac³ Wireless Dual-band Router 5 Gigabit Ethernet Ports 716MHz CPU 256MB RAM
Manufacturer: MikroTik
Brand: MikroTik
Architecture: ARM 32bit
CPU: IPQ-4019
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 251 x 129 x 39 mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Wireless capabilities
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: IPQ-4019
Antenna gain dBi for 5 GHz: 5.5
Wireless 5 GHz chip model: IPQ-4019
Wireless 5 GHz generation: Wi-Fi 5
AC speed: AC1200
Ethernet
10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 30 W
Max power consumption without attachments: 12 W
FAN count: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
