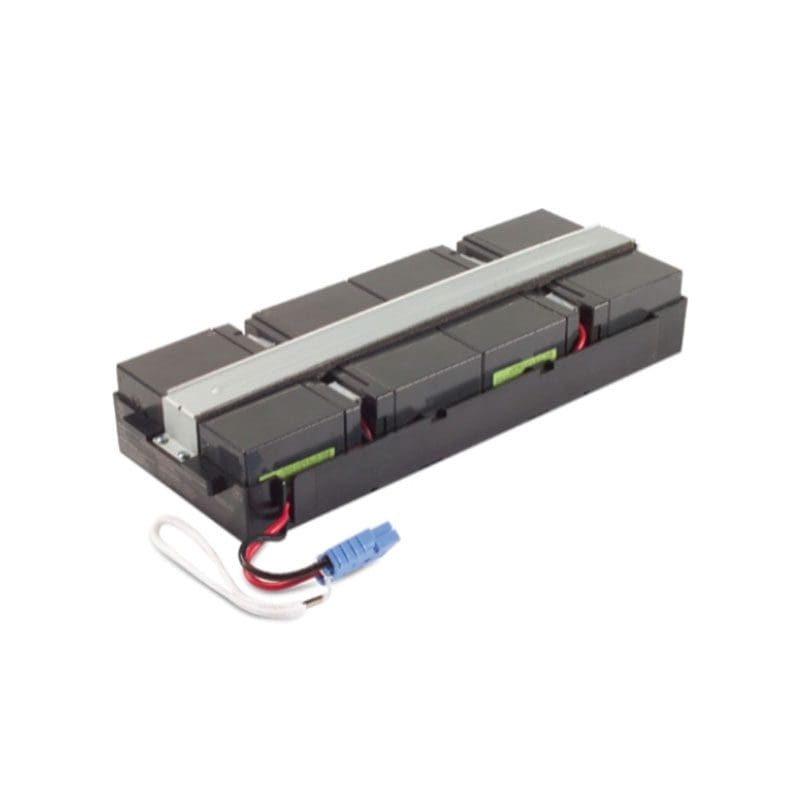

RBC31 Technical Specifications
APC Replacement Battery Cartridge #31
Input
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Expected Battery Life (years) 3 – 5
Replacement battery cartridge note
Comes as a complete battery assembly, batteries and metal tray housing
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 432
Physical
Maximum Height
2.75inches (70MM, 7.0CM)
Maximum Width
6.5inches (165MM, 16.5CM)
Maximum Depth
16.5inches (419MM, 41.9CM)
Net Weight
24.7lbs. (11.23KG)
Shipping weight
28.0lbs. (12.73KG)
Shipping Height
7.5inches (191MM, 19.1CM)
Shipping Width
11.5inches (292MM, 29.2CM)
Shipping Depth
21.5inches (546MM, 54.6CM)
Units per Pallet
30.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
