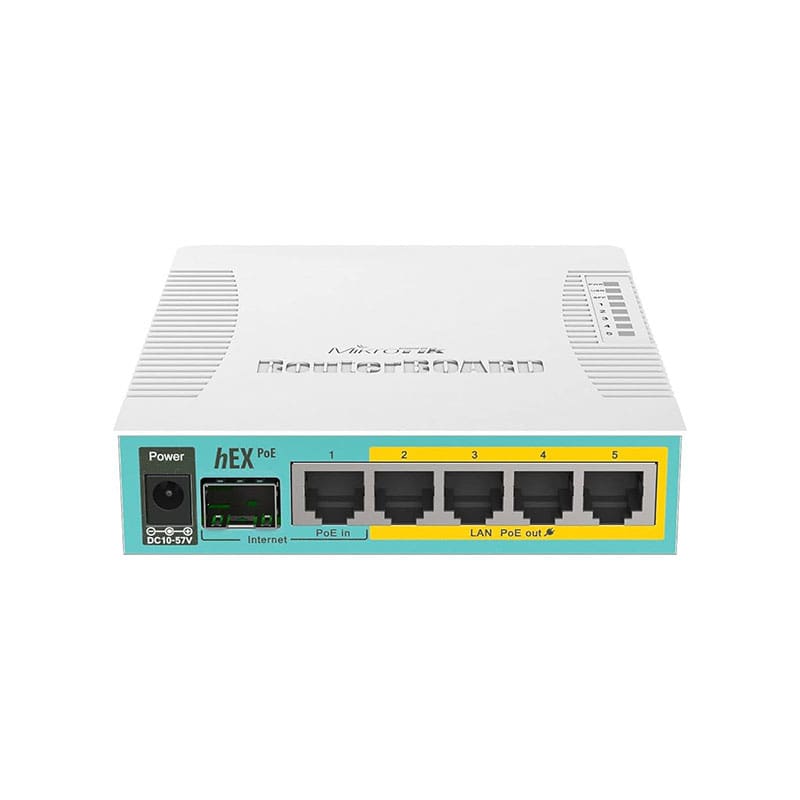

RB960PGS Technical Specification
MikroTik 1000Mbit/S 5 X RJ45 PoE Ports + 1 X SFP Ports Gigabit Ethernet Router
Brand: Mikrotik
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: QCA8337
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100’000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 54 W
Max power consumption without attachments: 6 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-57 V
PoE-out
PoE-out ports: Ether2-Ether5
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1 A
Max out per port output (input 30-57 V); 450 mA
Max total out (A): 2 A
Ethernet
10/100/1000 Ethernet ports: ;5
Fiber
SFP ports: 1
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Beeper: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
