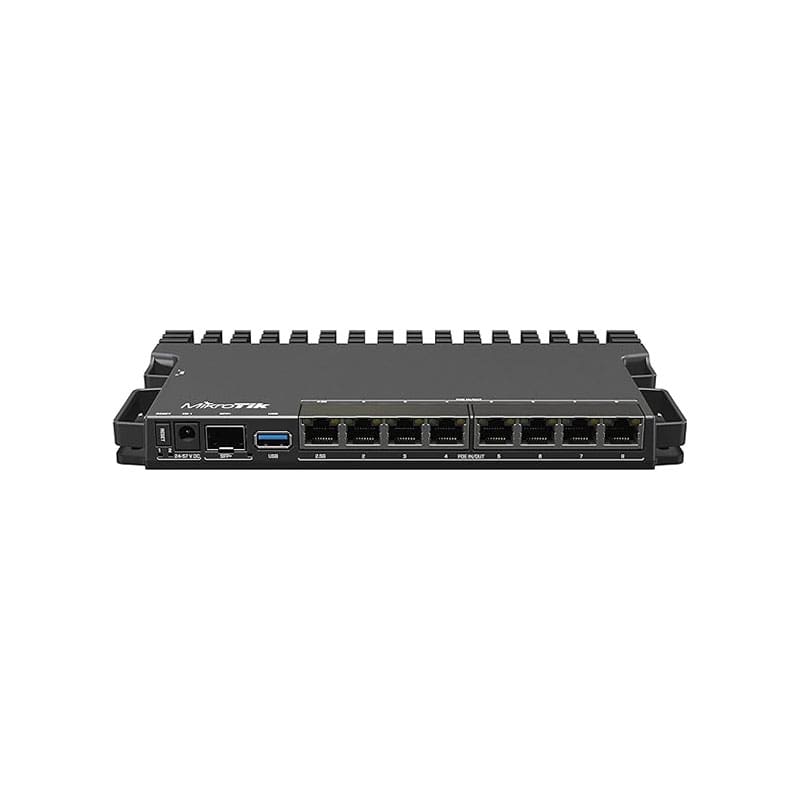

RB5009UPr+S+IN Technical Specification
Mikrotik 7-P LAN RJ-45 + 1-P SFP+ 1U Router
Manufacturer: MikroTik
Brand: MikroTik
CPU: 88F7040 1.4 GHz
CPU architecture: ARM 64bit
CPU core count: 4
Size of RAM: 1 GB
RAM type: DDR4
Storage: 1 GB, NAND
Number of 1G Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Number of 10G SFP+ ports: 1
USB port: 1 (3.0 type A)
Operating system: Only v7 RouterOS
Switch chip model: 88E6393
Dimensions: 220 x 125 x 22 mm
8.66 x 4.92 x 0.86 in
Operating temperature: -40°C to +60°C
PoE-in: 802.3af/at
PoE-Out: 802.3af/at
PoE-Out ports: Ether1 – Ether8, max out per port output (input < 30 V): 640 mA,max out per port output (input > 30 V): 420 mA
Smart PoE: Controller
Max total out: 2.59 A
Total output power; 130 W
Total output current: 2.28 A
Number of DC inputs: 3
Supported input voltage: 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage: 48 V
Power adapter nominal current: 2 A
Max power consumption (without attachments): 15 W
Max power consumption: 150 W
