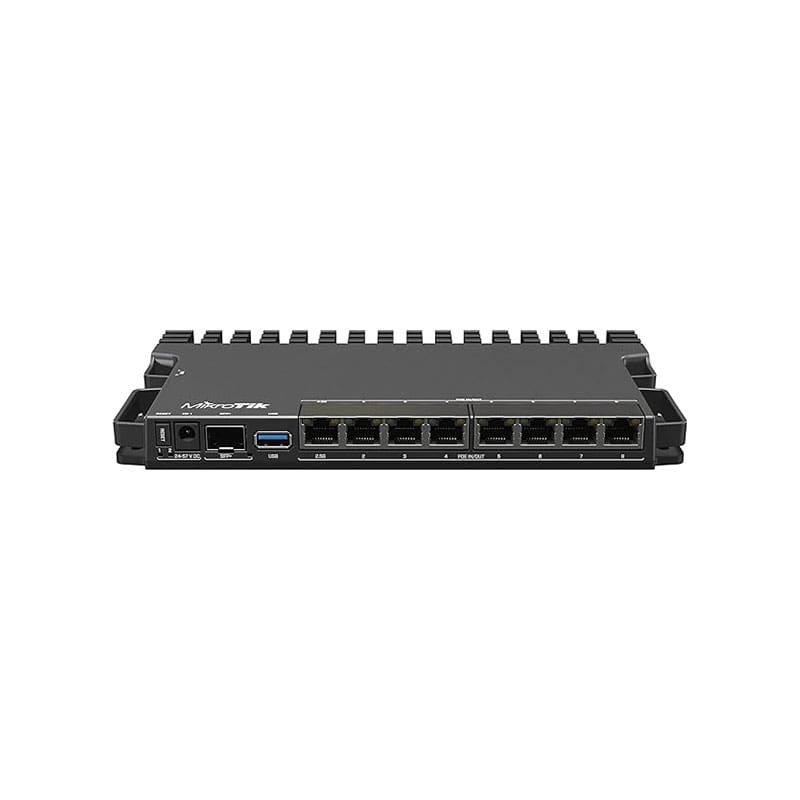

RB5009UG+S+IN Technical Specification
MikroTik 1.4GHz per core 1 GB RAM RouterOS L5 Ultimate Heavy-Duty Home Lab Router
Manufacturer: MikroTik
CPU: 88F7040 1.4 GHz
CPU architecture: ARM 64bit
CPU core count: 4
Size of RAM: 1 GB
RAM type: DDR4
Storage: 1 GB, NAND
Number of 1G Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Number of 10G SFP+ ports: 1
USB port: 1 (3.0 type A)
Operating system: RouterOS (License level 5)
Switch chip model: 88E6393
Dimensions: 220 x 125 x 22 mm (8.66″ x 4.92″ x 0.86″ in)
Operating temperature: -40°C to +60°C
Powering
PoE-in: 802.3af/at
Number of DC inputs: 3
Supported input voltage: 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.5 A
Max power consumption (without attachments): 14 W
Max power consumption: 20 W
Certification: CE, FCC, IC
