R8P13A Technical Specifications

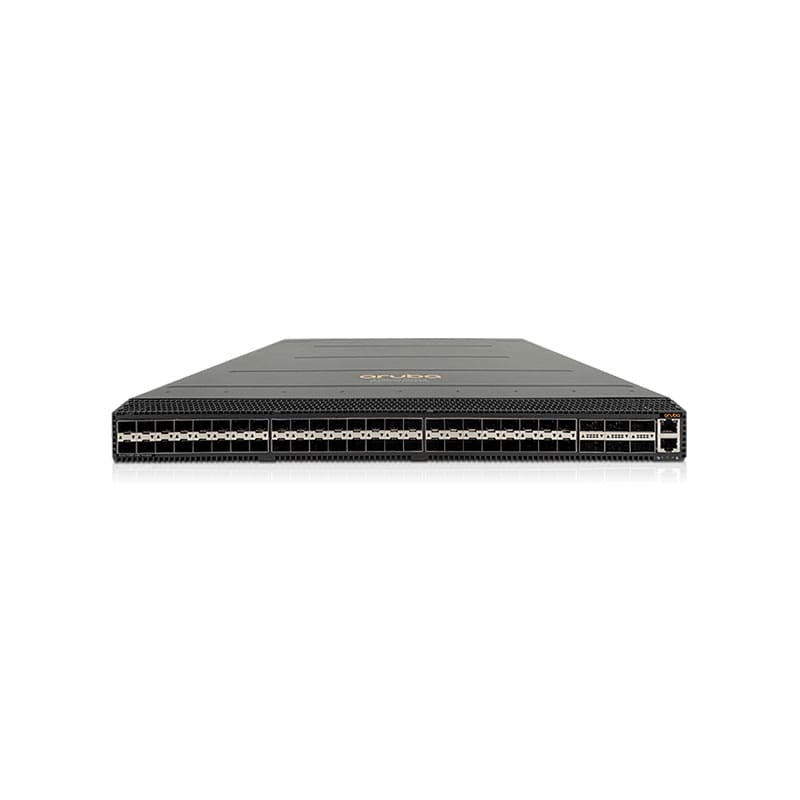

Aruba 10000-48Y6C Front-To-Back Switch Bundle
Manufacturer: Aruba
Manufacture Part Number: R8P13A
CPU: 2.9GHz
Memory, Drive and Flash: 32GB RAM, 64GB SSD
Packet Buffer: 32MB
Performance2
Switching Capacity: 3.6Tbps (bidirectional)
IPv4 Host Table: 120,000
IPv6 Host Table: 52,000
IPv4 Unicast Routes: 131,072
IPv6 Unicast Routes: 32,732
MAC Table Size: 98,304
IGMP Groups: 4,094
MLD Groups: 4,094
IPv4 Multicast Routes: 4,094
IPv6 Multicast Routes: 4,094
Operating Temperature: 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.)
Non-Operating: -40°C to 70°C (-40°F to 158°F) up to 3.0 km (15,000 ft.)
Non-Operating/Storage Relative Humidity: 5% to 95% @ 65°C (149°F)
Max Operating Altitude: Up to 10,000ft (3.048 km)
Max Non-Operating Altitude: Up to 15,000ft (4.6km)
Primary Airflow: Front-to-Back Port to PSU or Back-to-Front PSU to Port
