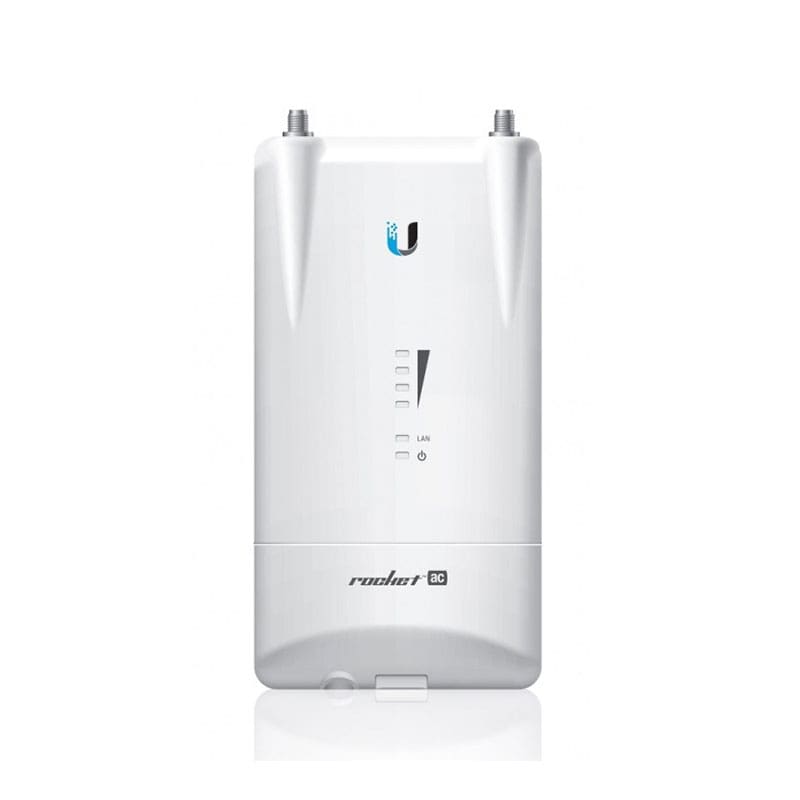

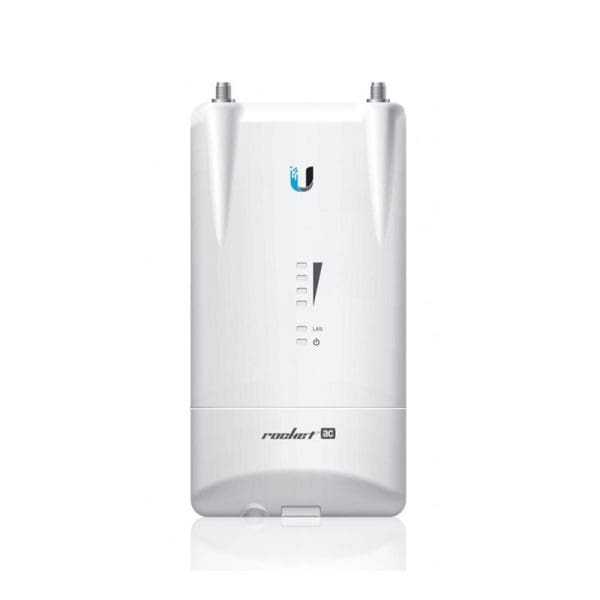

R5AC-LITE US Technical Specifications
UBIQUITI NETWORKS R5AC-Lite Version
Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
Weight 250 g (8.81 oz)
Power Supply 24V, 0.5A Gigabit PoE Adapter
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Networking Interface (1) 10/100/1000 Mbps
RF Connections (2) RP-SMA (Waterproof )
LEDs Power, LAN, (4) Signal Strength
Channel Sizes 10/20/30/40/50/60/80 MHz,10/20/30/40 MHz
Enclosure Characteristics Outdoor UV Stabilized Plastic
Supported Voltage Range 20-26VDC
ESD/EMP Protection ± 24KV Air / Contact
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
