R3USDSS6-XXX Technical Specifications

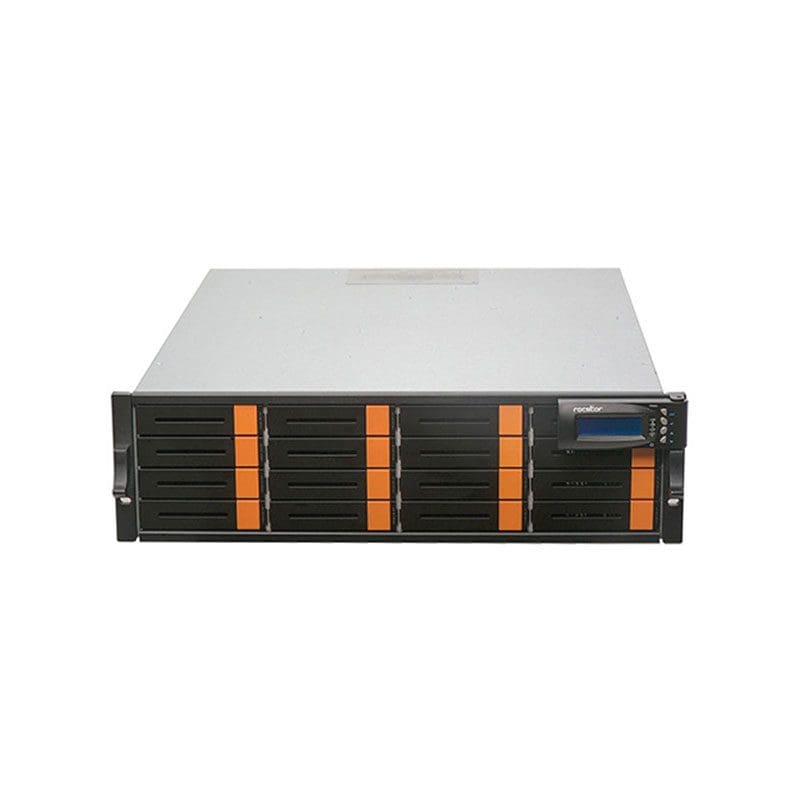

Rocstor Enteroc S630 SAS Single Controller RAID Enclosure
Brand : Rocstor
Manufacturer Part Number : R3USDSS6-XXX
Product Type : Storage System
Host Interface 2 x 6 Gb/s SAS (SFF-8088)
Disk Interface 6 Gb/s SAS, 6 Gb/s SATA
Expansion 1 x 6 Gb/s SAS (SFF-8088)
Supports up to 192 disks
Capacity Holds 16 disks
Processor 800 MHz Dual Core RAID-On-Chip processor
Cache Memory 2 GB to 8 GB / 4 GB to 16 GB DDR3-1333 ECC SDRAM
Battery Backup Optional
Management Port Supported
Support
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
Array Size Up to 128
LUNs Up to 128
Backplane SAS II / SATA III single backplane
Fans 2
Power 2 x 500 W with PFC
90 to 264 VAC, 4 to 7.5 A, 47 to 63 Hz
