R2USDSS6-XXX Technical Specifications

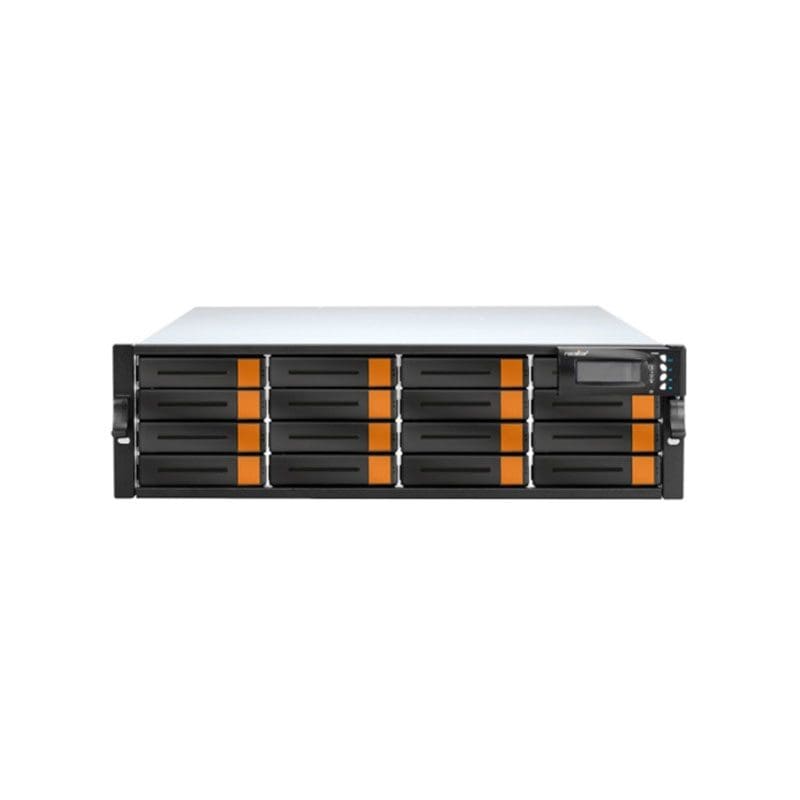

Rocstor Enteroc S620 SAS Single Controller RAID Enclosure
Brand : Rocstor
Manufacturer Part Number : R2USDSS6-XXX
Product Type : Storage System
Host Interface 2 x SAS (6 Gb/s)
Disk Interface 6 Gb/s SAS, 6 Gb/s SATA
Expansion 1 x SAS (6 Gb/s)
Supports up to 96 disks
Capacity Holds 12 disks
Processor 800 MHz RAID-On-Chip storage processor
Cache Memory 1GB to 4 GB DDR2-800 ECC Registered SDRAM
Battery Backup Optional
Management Port Supported
Support
RAID Level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
Array Size Up to 128
Backplane SAS II / SATA III single backplane
Fans 2
Power 2 x 400 W with PFC
