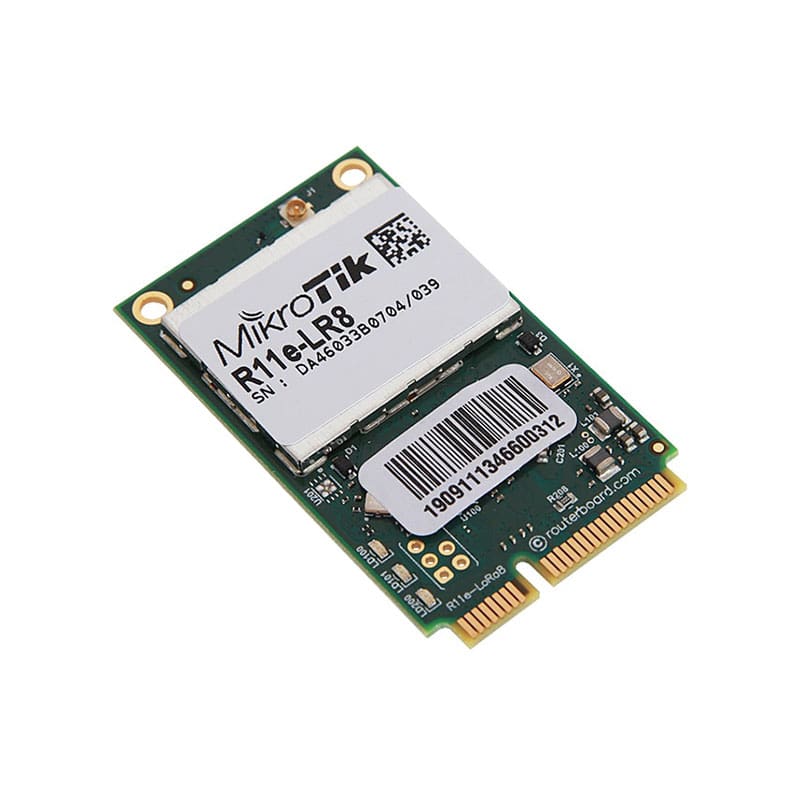

R11e-LR8 MikroTik 863-870 MHz 20 dBm LoRaWAN concentrator Gateway card mini PCIe
R11e-LR8 Overview
MikroTik 863-870 MHz 20 dBm LoRaWAN concentrator Gateway card mini PCIe. This is a new concentrator Gateway card for LoRa® technology in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRa® connectivity for any MikroTik product that has mPCIe slot with connected USB lines.
$89
R11e-LR8 Technical Specifications
MikroTik 863-870 MHz 20 dBm LoRaWAN concentrator Gateway card mini PCIe
Manufacturer: MikroTik
Brand: MikroTik
Product code: R11e-LR8
Max power consumption: 2 W
Interface: Mini-PCIe
Supported: class A and C
Frequency: 863-870 MHz (EU863-870, RU864-870, IN865-867)
RF Output power: 863-870 MHz 20 dBm
Receive max sensitivity: -137 dB @ SF12
Range: Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit
Operating ambient temperature: -40 to 70°C
