R11e-5HacD Technical Specifications

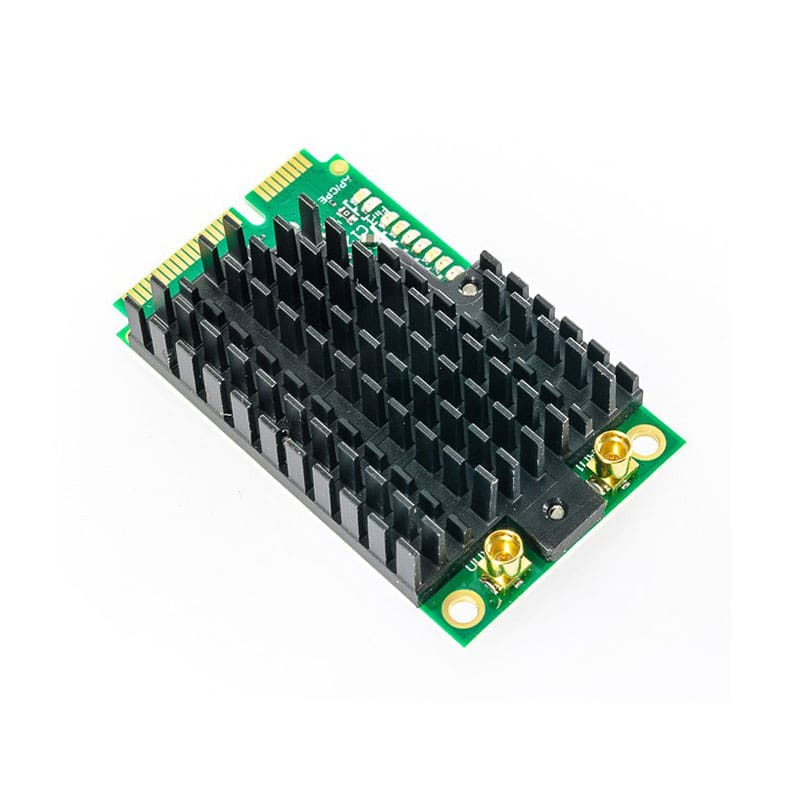

MikroTik 5GHz HP miniPCI-e 802.11ac 2×2 Card
Manufacturer: MikroTik
Brand: MikroTik
Chipset: QCA9882
Frequency range: 4920-6100MHz
Standards: 802.11a/c
Max output power: 500mW
Format: miniPCIe
Dimensions: 51x30x13mm
Connectors: 2x MMCX
Features: 9 LED indicators, ESD protection
Temperature Starting: -5C to +65C;
Operating: -30C to +65C
MAX power consumption: 5W
TX/RX at MCS0: 26dBm / -96dBm
TX/RX at MCS7: 23dBm / -76dBm
TX/RX at 6Mbit: 27dBm / -96dBm
TX/RX at 54Mbit: 24dBm / -76dBm
