R1108 Technical Specifications

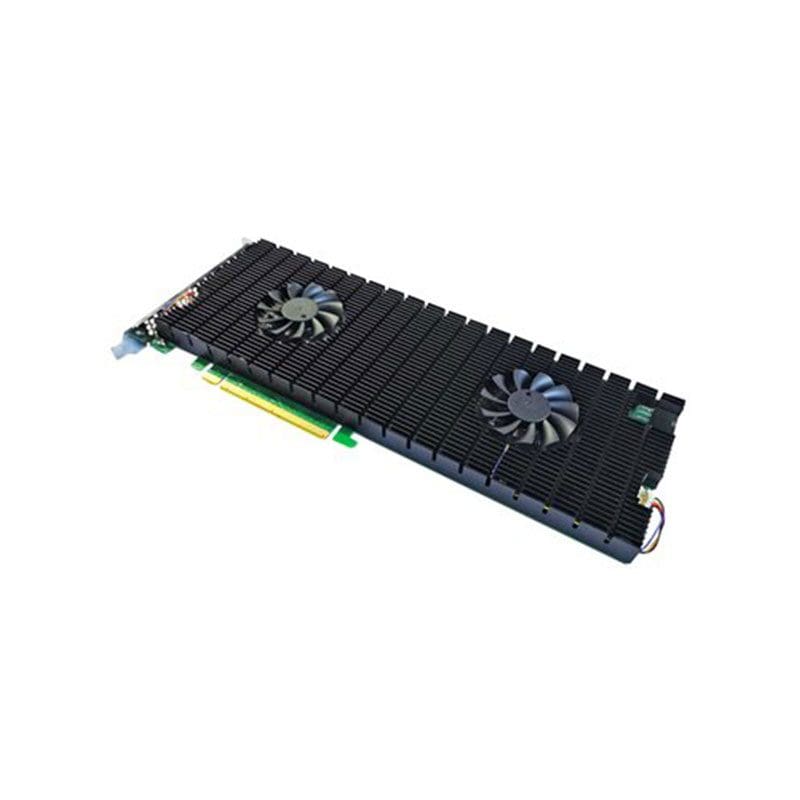

HighPoint R1000 Series Storage Controller M.2 NVMe Card PCIe 3.0 x16
Brand : HighPoint
Manufacturer Part Number : R1108
Performance
Device Type Storage controller – plug-in card
Hard Drive Form Factor Compatibility M.2
Host Bus PCIe 3.0 x16
Storage Controller
Interface M.2 NVMe Card
Data Transfer Rate 8 Gbit/s
Supported Devices Solid state drive
Channel Qty 8
Max Storage Devices Qty 8
Expansion / Connectivity
Interfaces 8 x M.2 Card (internal)
Miscellaneous
Features Built-in cooling fans, anodized aluminum heatsink
MTBF 920,585 hours
Compliant Standards FCC, RoHS, WEEE, REACH
Software / System Requirements
OS Required Windows 10 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2019, Apple macOS 10.13 or later, FreeBSD 12.1 or later
Dimensions & Weight
Width 0.8 in
Depth 11.2 in
Height 4.4 in
Weight 27.19 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
